RISK RT062/RT063 Titanium Brake Lever Oil Reservoir Cover Screws for Shimano XT XTR M615 M675 M785 M8000 Hydraulic Disc Brakes

Descriptions

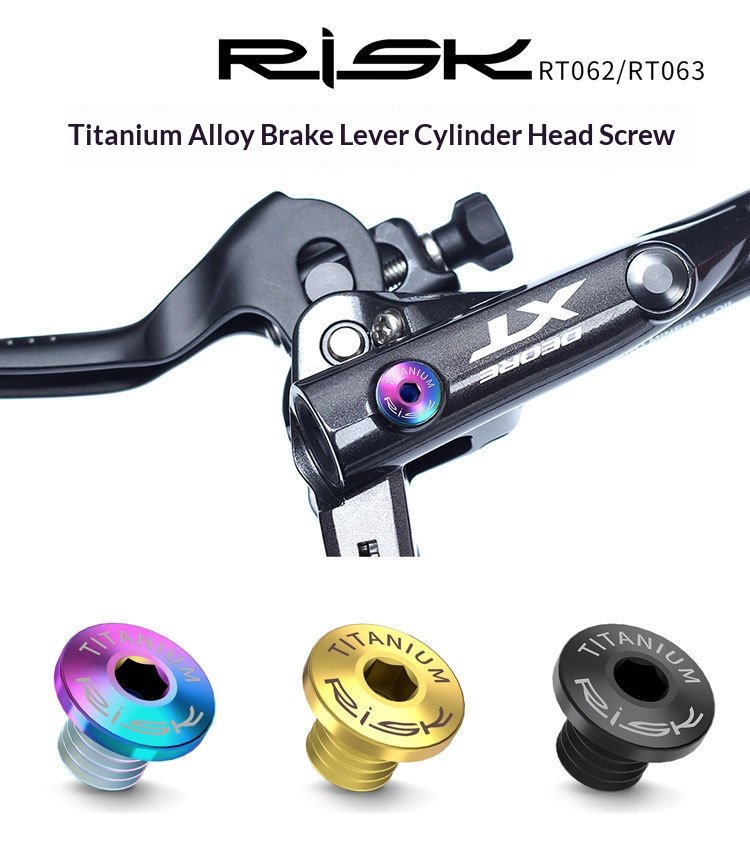

Upgrade your hydraulic disc brake levers with the RISK RT062/RT063 Titanium Oil Reservoir Cover Screws. Made from lightweight titanium alloy, these screws are designed to replace the original brake lever oil cylinder cover screws, offering excellent strength, corrosion resistance, and a premium custom look.

Available for both integrated oil reservoir brake levers and split oil reservoir brake levers, this product is suitable for many Shimano hydraulic brake models, including XT, XTR, DEORE, M615, M675, M785, M7000, M8000, M9000, and M9020 series.

The screws are available in multiple colors, making them ideal for bike customization, weight reduction, and maintenance replacement.

Key Features

Brand: RISK
Model: RT062 / RT063
Material: Titanium alloy
Application: Hydraulic disc brake lever oil reservoir cover screws
Lightweight and durable
Corrosion-resistant titanium construction
Available for integrated and split oil reservoir brake levers
Easy installation with hex wrench
Suitable for MTB, road bike, e-bike, and bicycle hydraulic brake upgrades

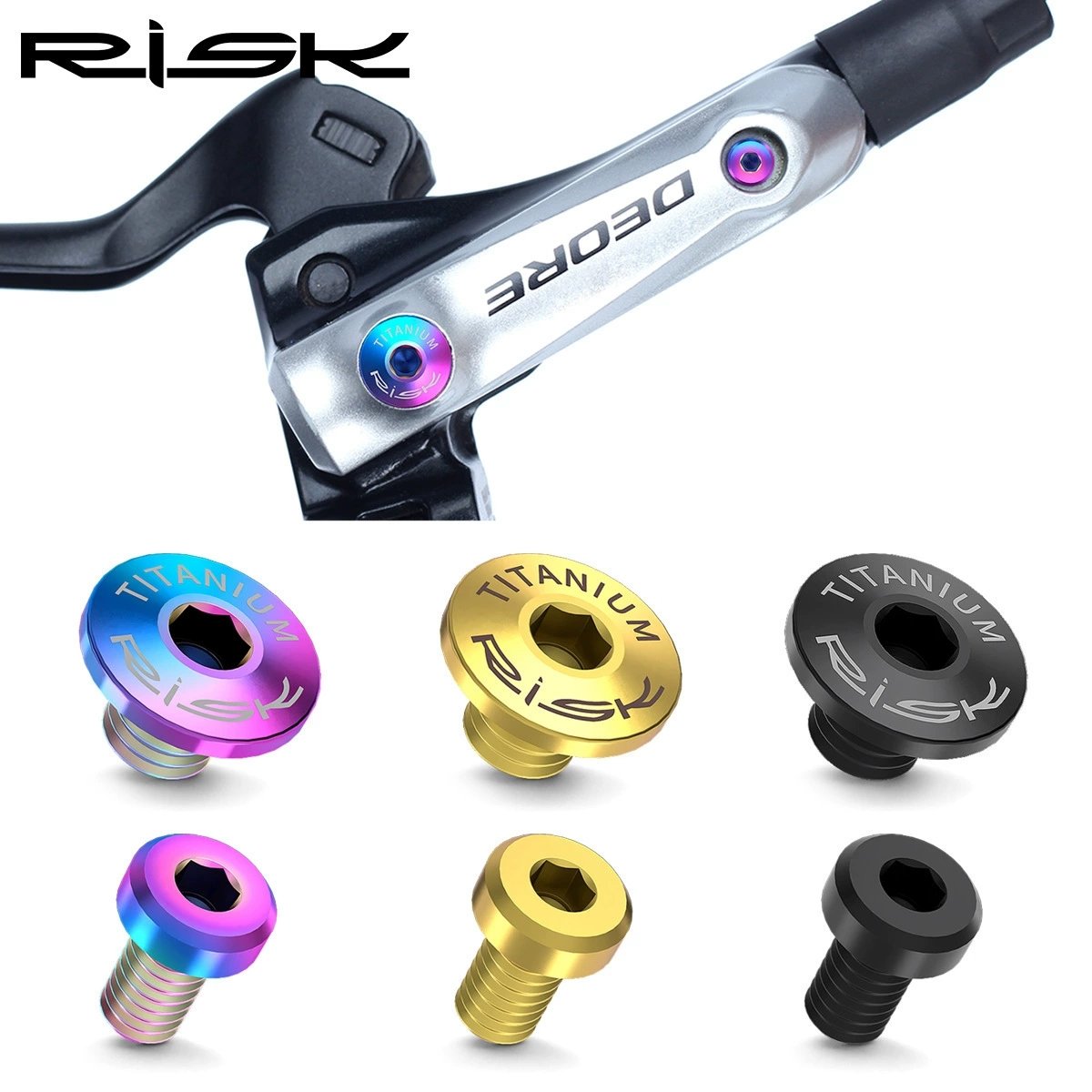

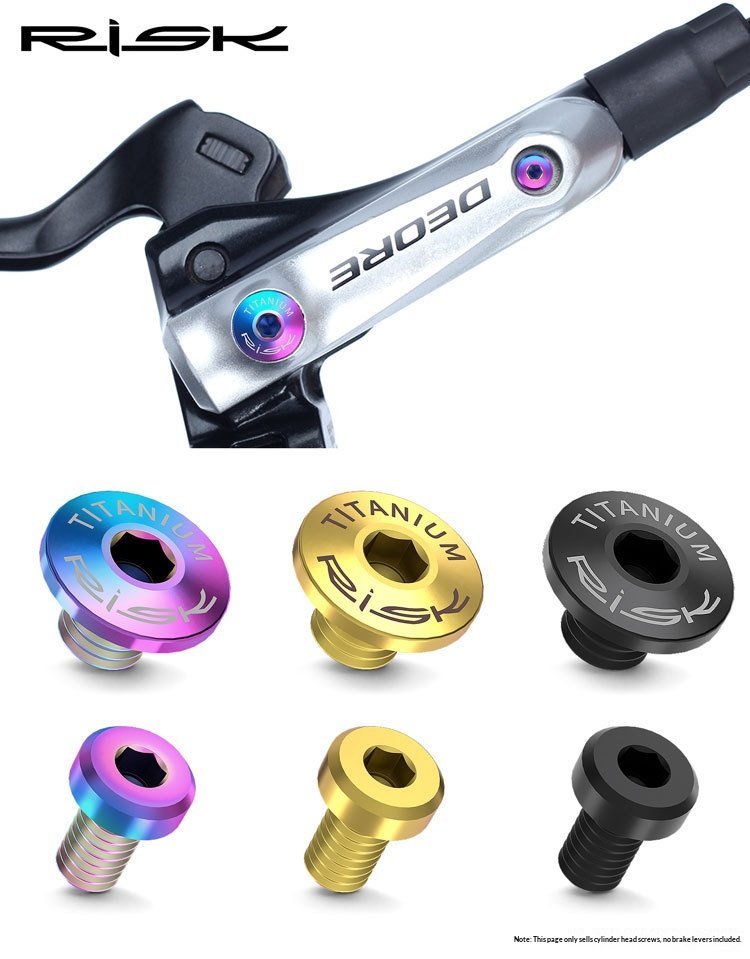

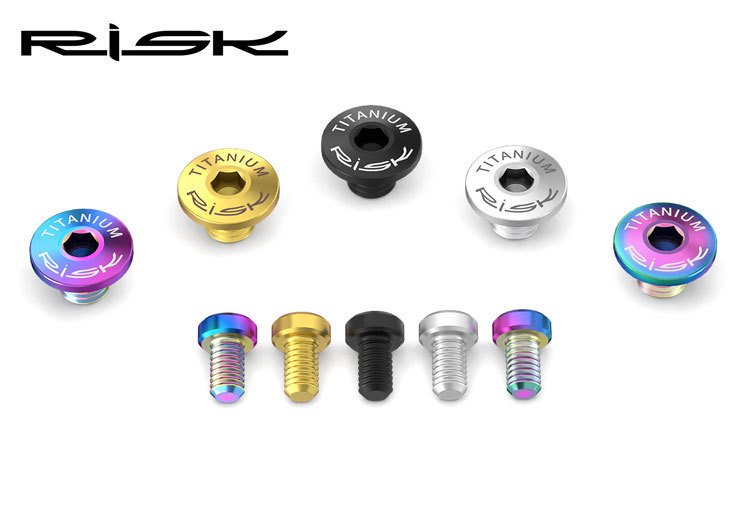

Multiple color options: Rainbow, Gold, Black, Titanium

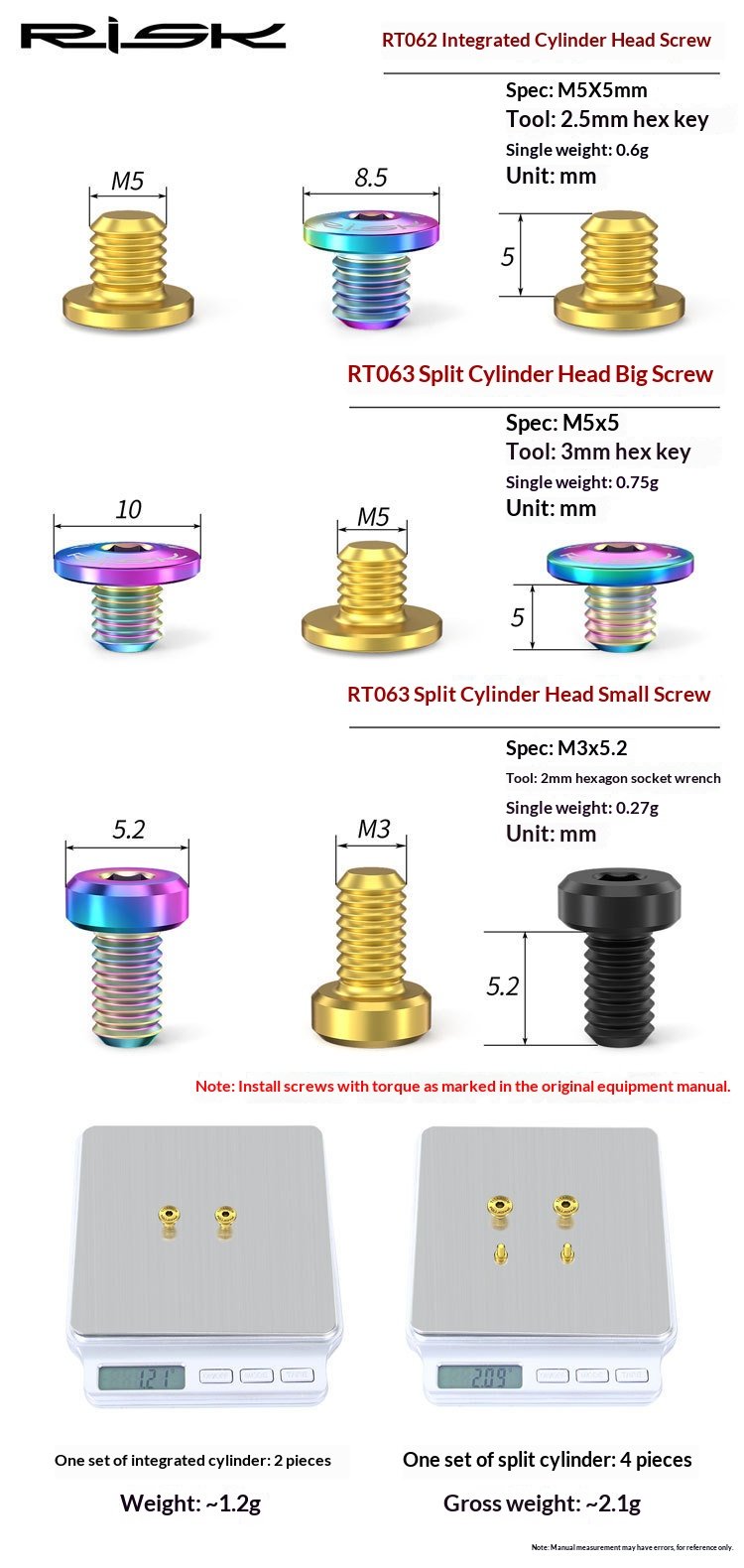

Product Specifications

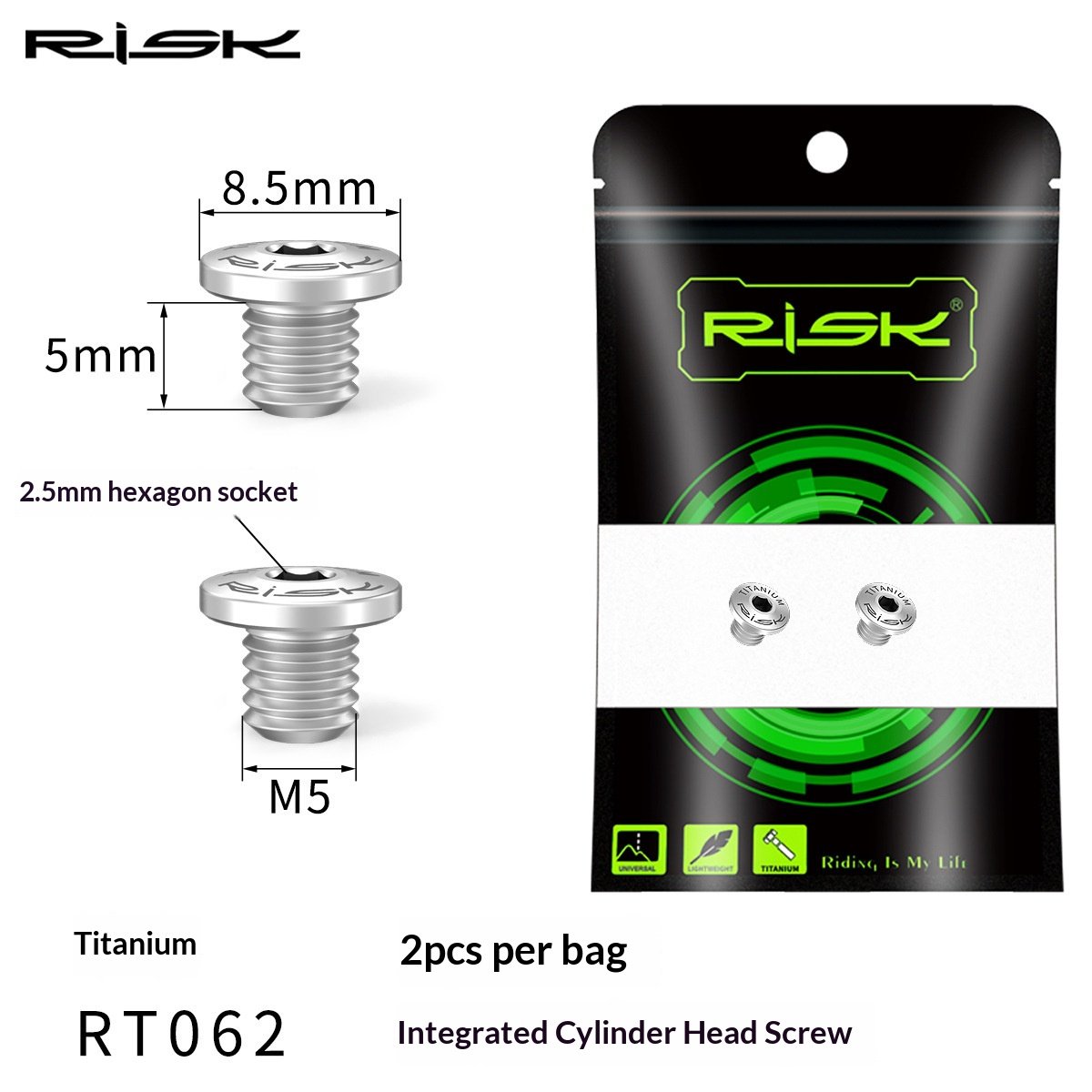

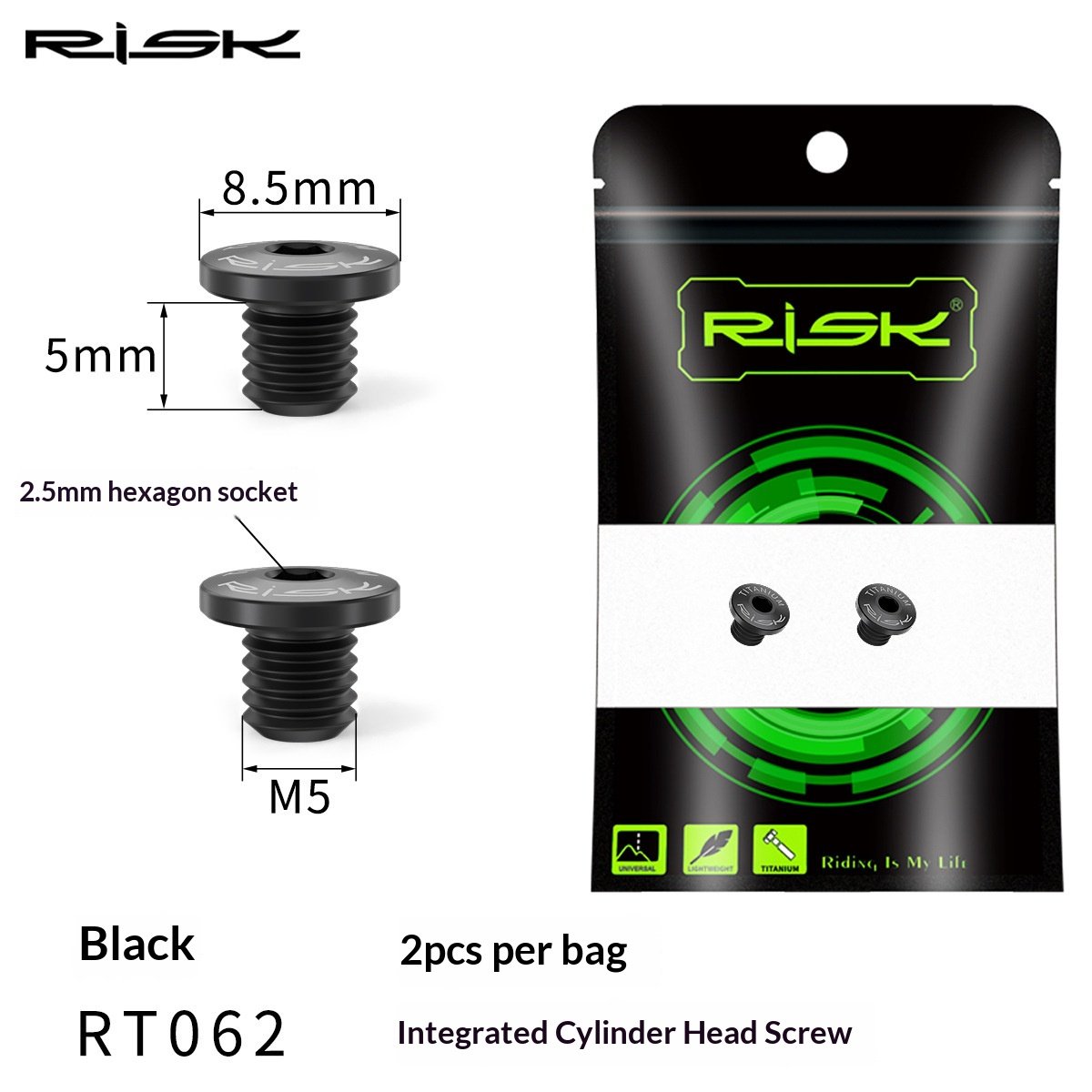

RT062 Integrated Oil Reservoir Cover Screw

Item	Specification
Model	RT062
Type	Integrated oil reservoir cover screw
Thread Size	M5 x 5 mm
Head Diameter	8.5 mm
Screw Height	5 mm
Tool Required	2.5 mm Allen key
Quantity	2 pcs / pack
Single Weight	Approx. 0.6 g
Weight per Bike Set	Approx. 1.2 g
Package Weight	Approx. 5.3 g

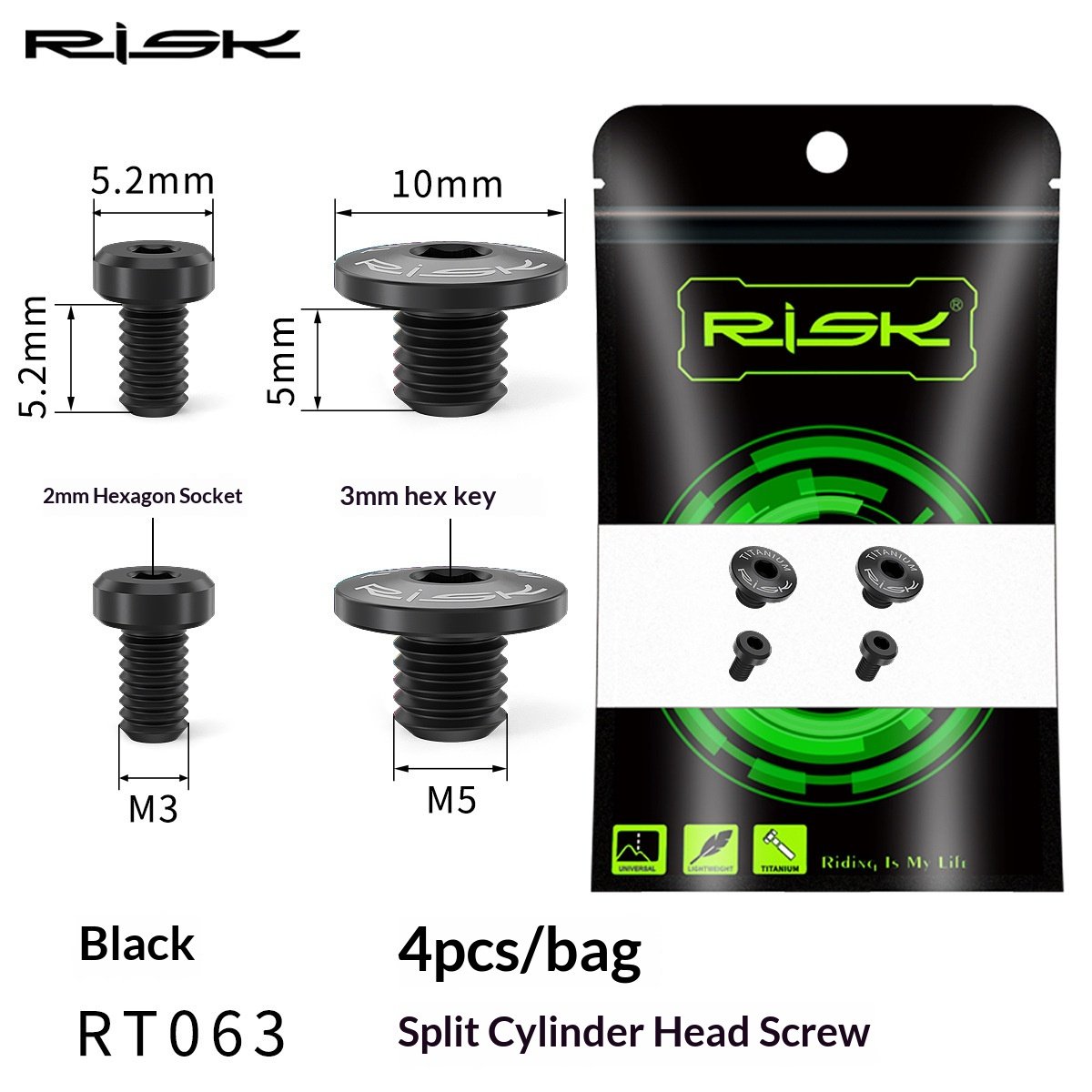

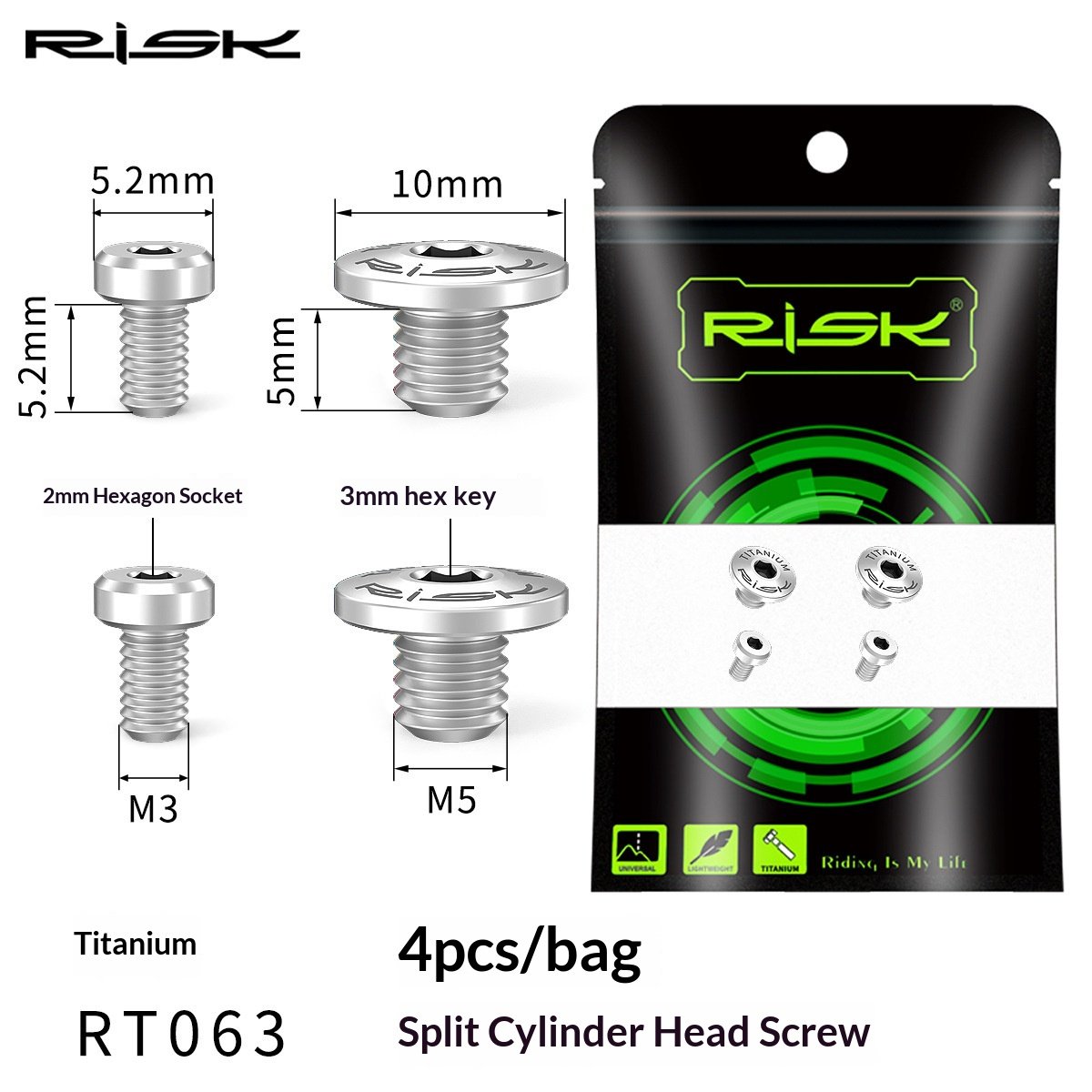

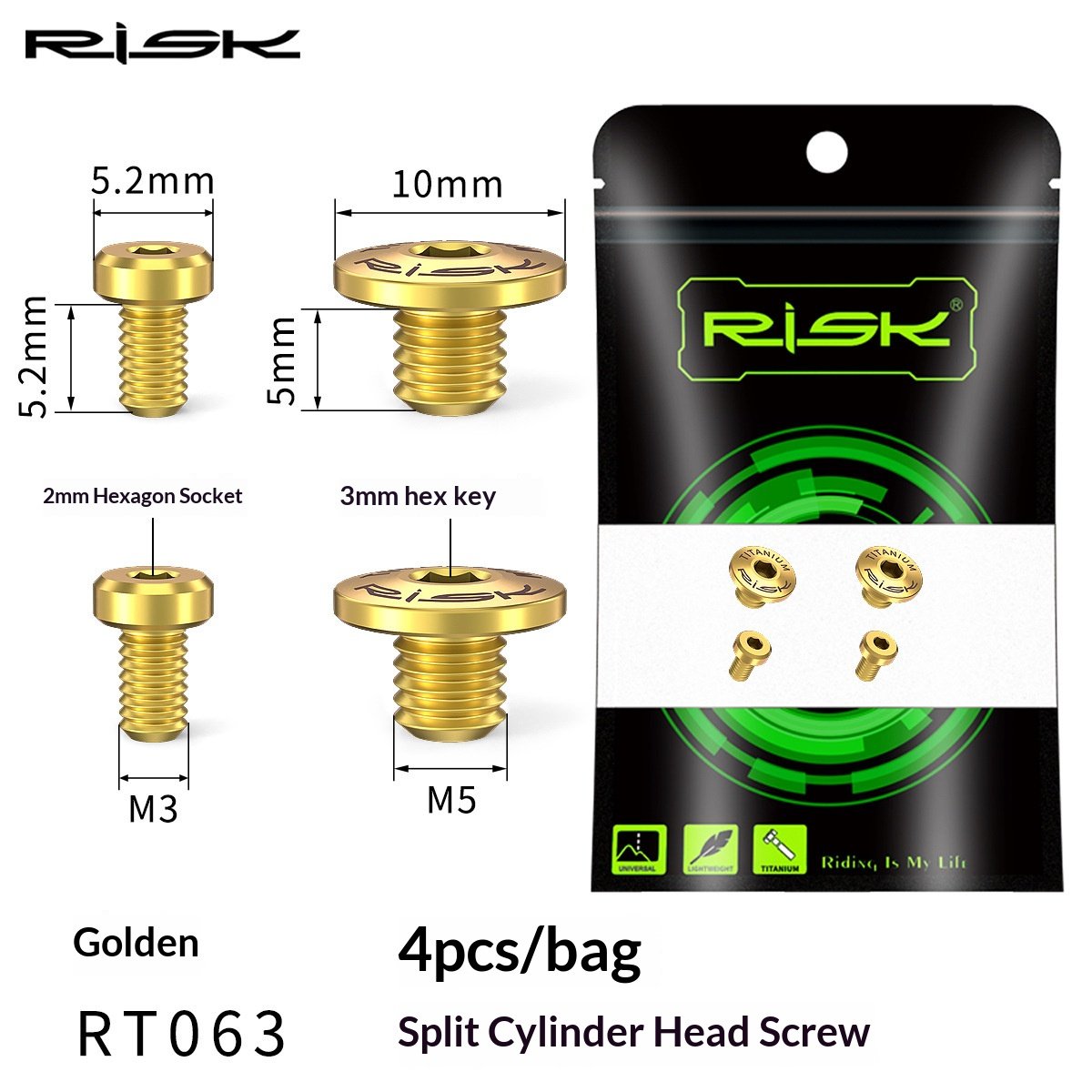

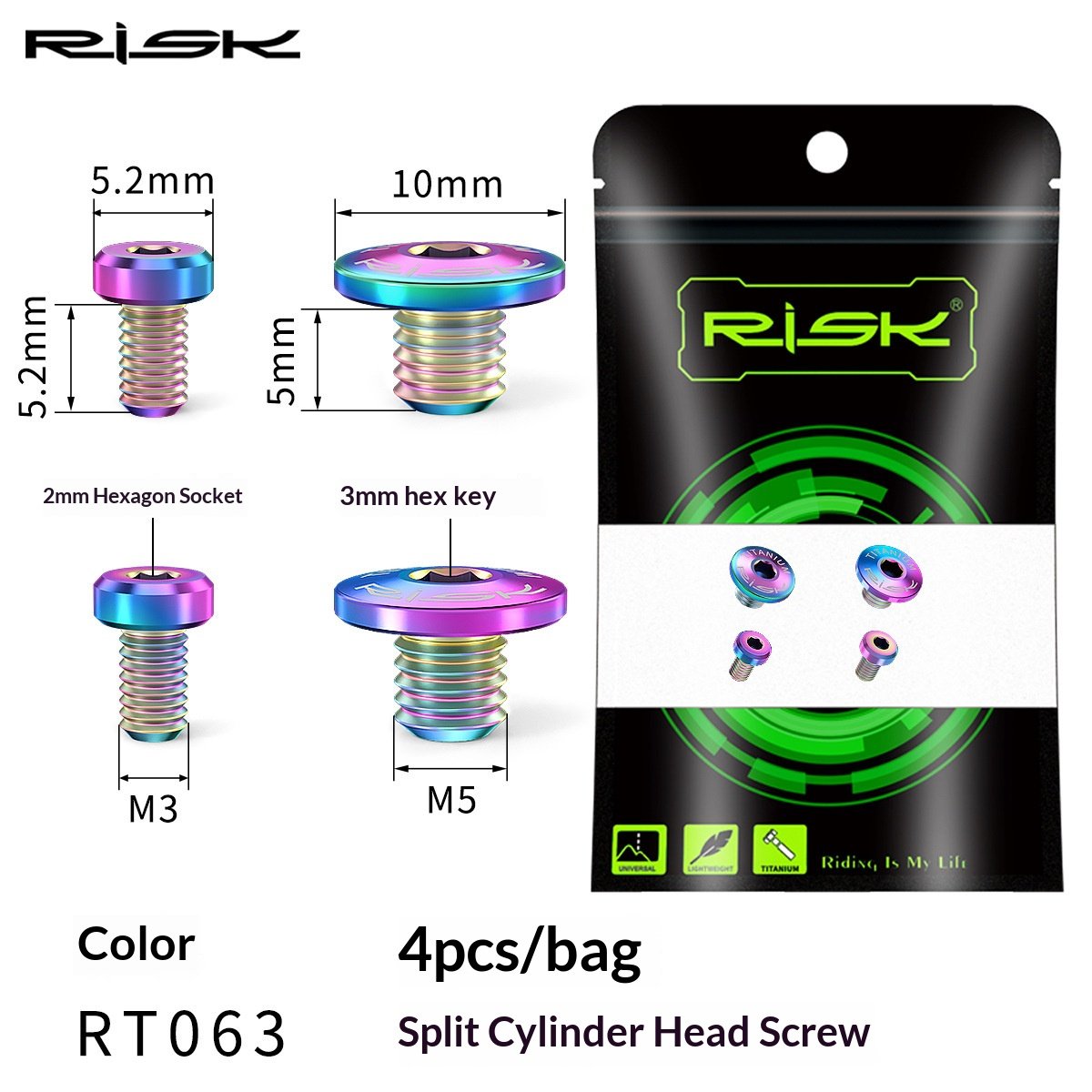

RT063 Split Oil Reservoir Cover Screws

Item	Specification
Model	RT063
Type	Split oil reservoir cover screws
Large Screw Size	M5 x 5 mm
Large Screw Head Diameter	10 mm
Large Screw Tool	3 mm Allen key
Large Screw Weight	Approx. 0.75 g
Small Screw Size	M3 x 5.2 mm
Small Screw Head Diameter	5.2 mm
Small Screw Tool	2 mm Allen key
Small Screw Weight	Approx. 0.27 g
Quantity	4 pcs / pack
Weight per Bike Set	Approx. 2.1 g
Package Weight	Approx. 6.2 g

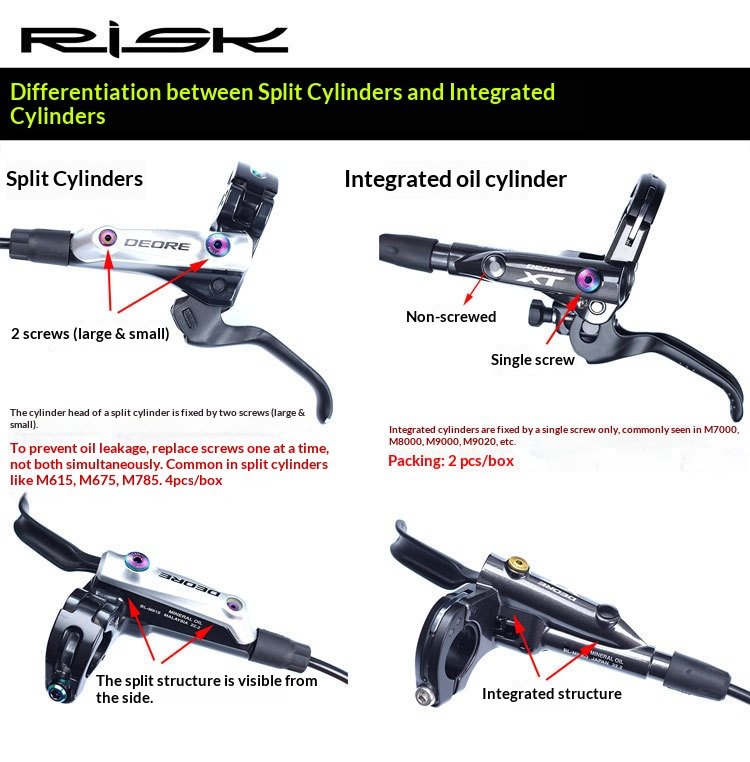

Compatibility Reference

RT062 Integrated Oil Reservoir Type

Suitable for brake levers with one single screw on the oil reservoir cover.

Commonly used on:

Shimano XT M8000
Shimano XTR M9000
Shimano XTR M9020
Shimano SLX M7000
Other similar integrated oil reservoir hydraulic brake levers

RT063 Split Oil Reservoir Type

Suitable for brake levers with two cover screws: one large screw and one small screw.

Commonly used on:

Shimano DEORE M615
Shimano SLX M675
Shimano XT M785
Other similar split oil reservoir hydraulic brake levers

Important Installation Notes

Please check your brake lever structure before ordering.
RT062 is for integrated oil reservoir brake levers with one cover screw.
RT063 is for split oil reservoir brake levers with two cover screws.
For split oil reservoir brakes, replace the screws one by one to avoid oil leakage.
Do not remove both reservoir cover screws at the same time.
Install according to the torque specified in the original brake manufacturer’s manual.
This product includes screws only. Brake levers are not included.

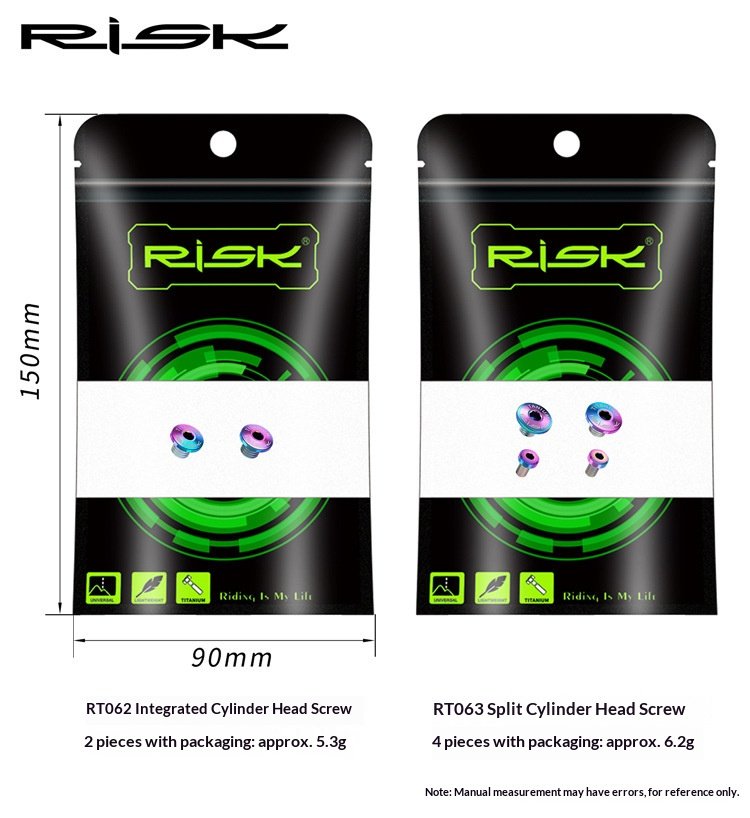

Package Includes

RT062

2 x Titanium oil reservoir cover screws

RT063

2 x M5 large titanium screws
2 x M3 small titanium screws

Suitable SKU Options

RT062 Integrated Oil Reservoir Cover Screws

SKU	Option Name	Color	Quantity
RT062-RB	Integrated Oil Reservoir Screws – Rainbow	Rainbow / Oil Slick	2 pcs
RT062-GD	Integrated Oil Reservoir Screws – Gold	Gold	2 pcs
RT062-BK	Integrated Oil Reservoir Screws – Black	Black	2 pcs
RT062-TI	Integrated Oil Reservoir Screws – Titanium	Titanium / Silver	2 pcs

RT063 Split Oil Reservoir Cover Screws

SKU	Option Name	Color	Quantity
RT063-RB	Split Oil Reservoir Screws – Rainbow	Rainbow / Oil Slick	4 pcs
RT063-GD	Split Oil Reservoir Screws – Gold	Gold	4 pcs
RT063-BK	Split Oil Reservoir Screws – Black	Black	4 pcs
RT063-TI	Split Oil Reservoir Screws – Titanium	Titanium / Silver	4 pcs
