RISK RL355 54mm Trunnion Rear Shock Holding Tool with Captive Screws and 3/8-Inch Drive for Bicycle Shock Service
RISK RL355 54mm Trunnion Rear Shock Holding Tool with Captive Screws and 3/8-Inch Drive for Bicycle Shock Service.
Related
Descriptions
RISK RL355 54mm Trunnion Rear Shock Holding Tool with Captive Screws and 3/8-Inch Drive for Bicycle Shock Service

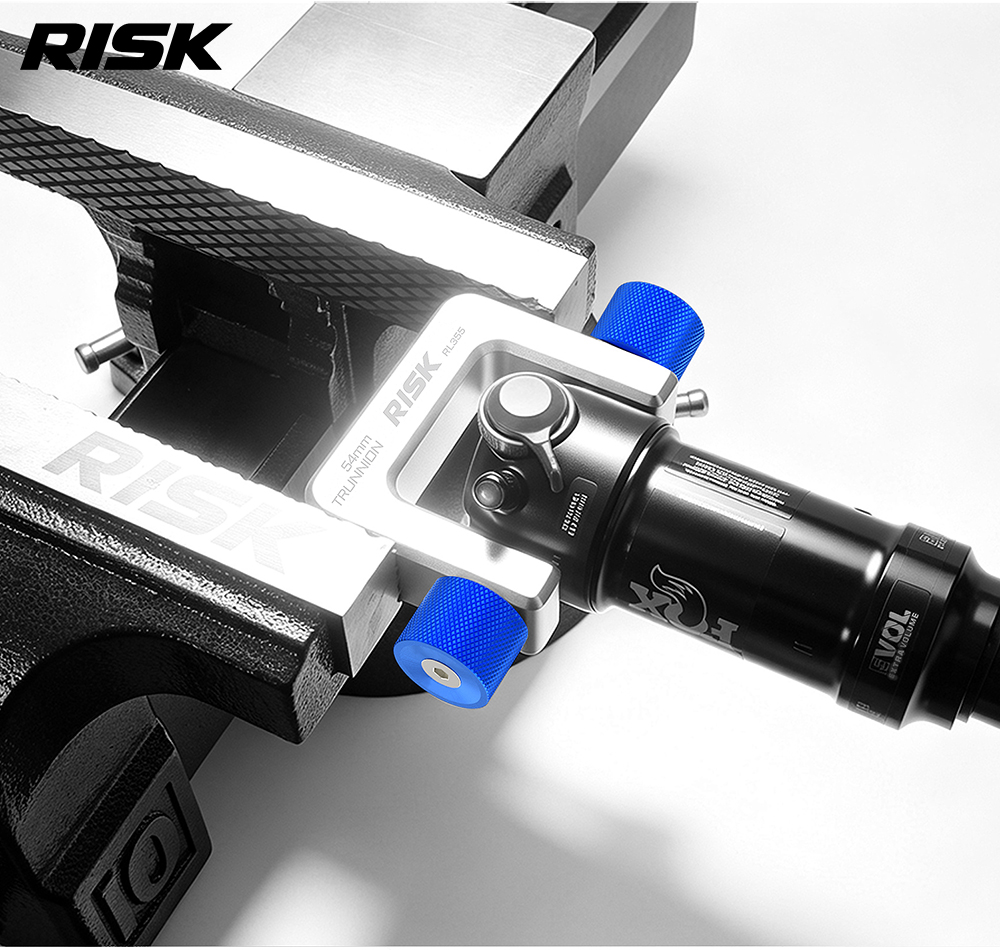

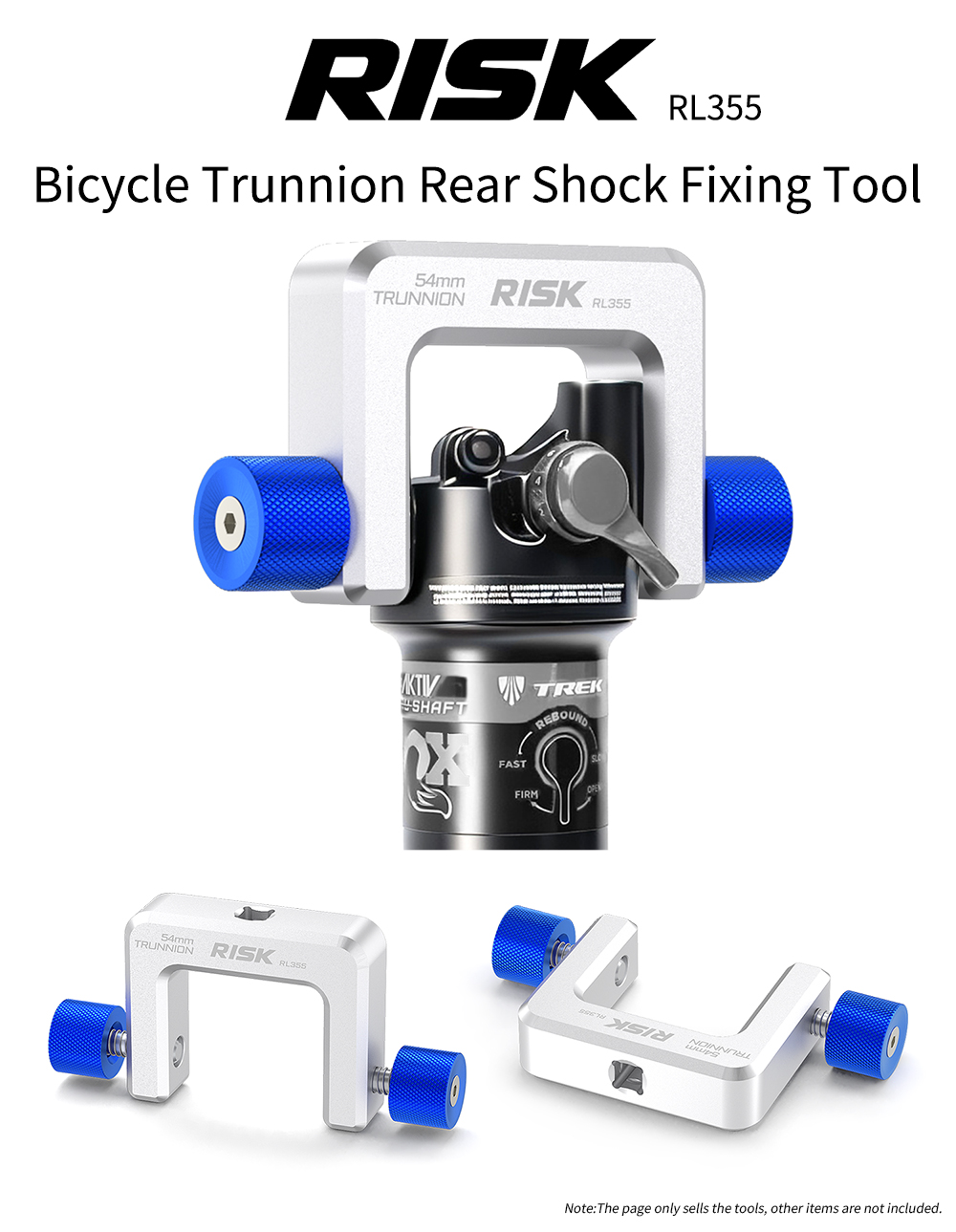

New Model. A rear-shock holding fixture for a 54mm trunnion mounting interface. The U-shaped tool is shown holding a trunnion shock during bench servicing and tightening work.
Product Features

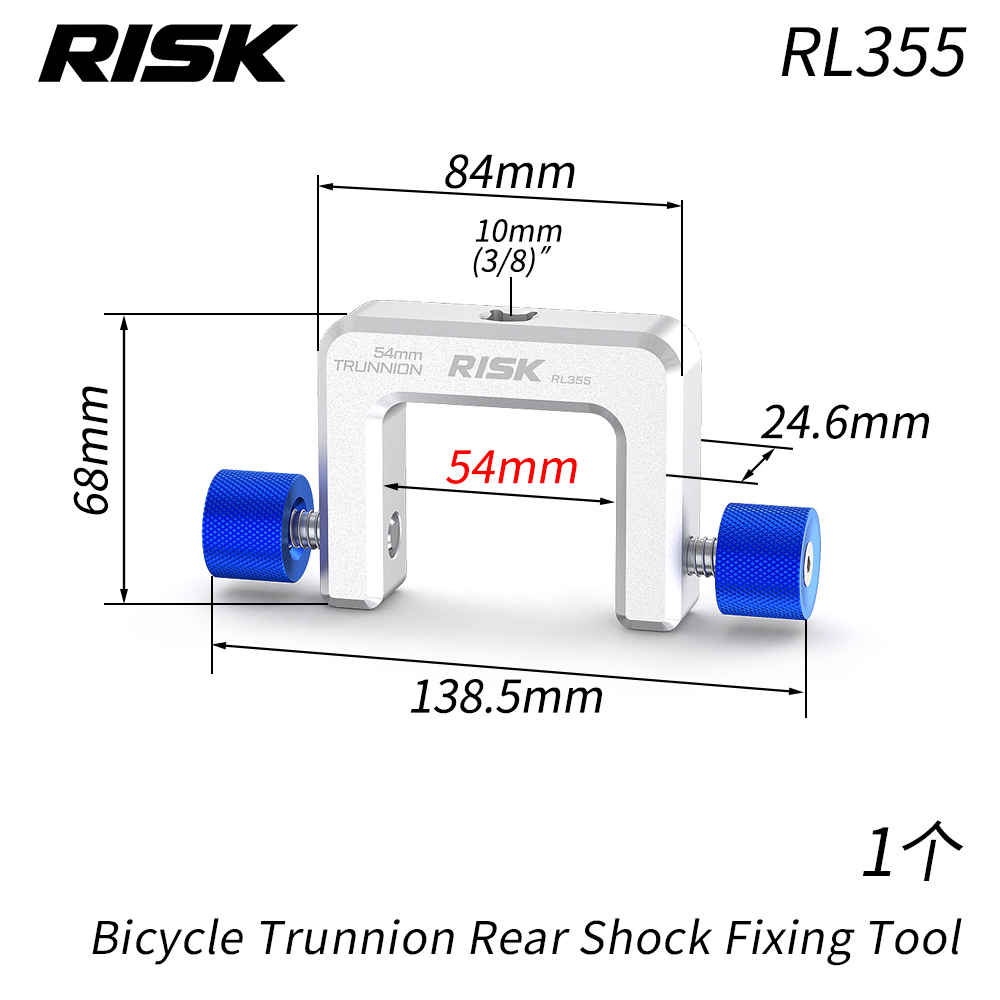

- 54mm internal trunnion spacing shown in the dimension drawing.

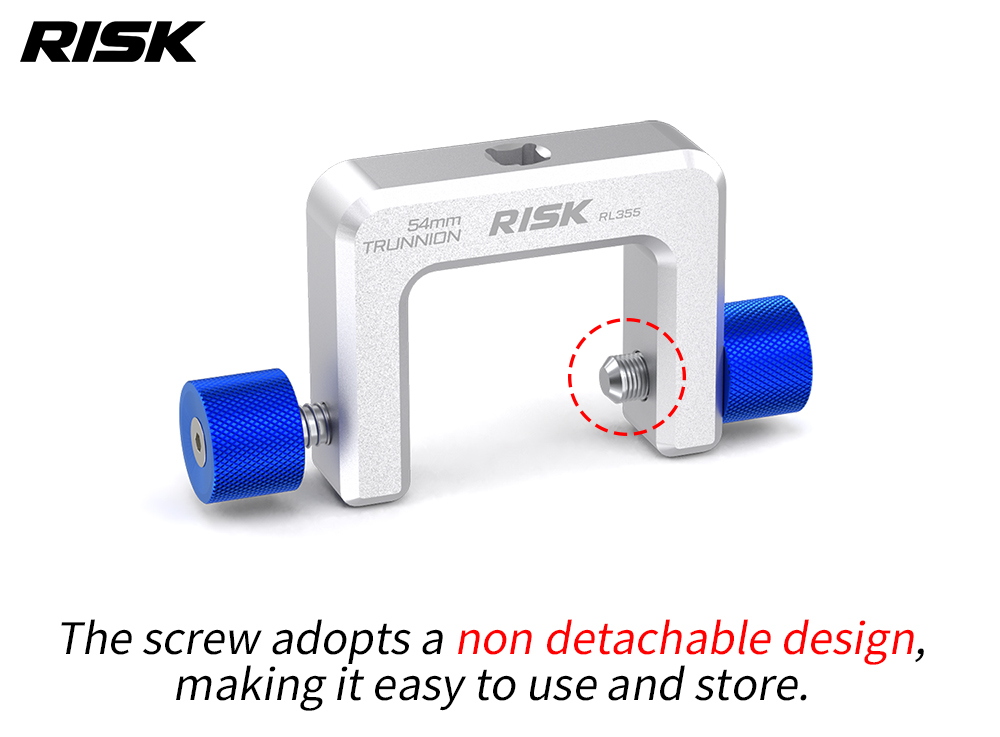

- Captive, non-detachable fixing screws make handling and storage convenient.

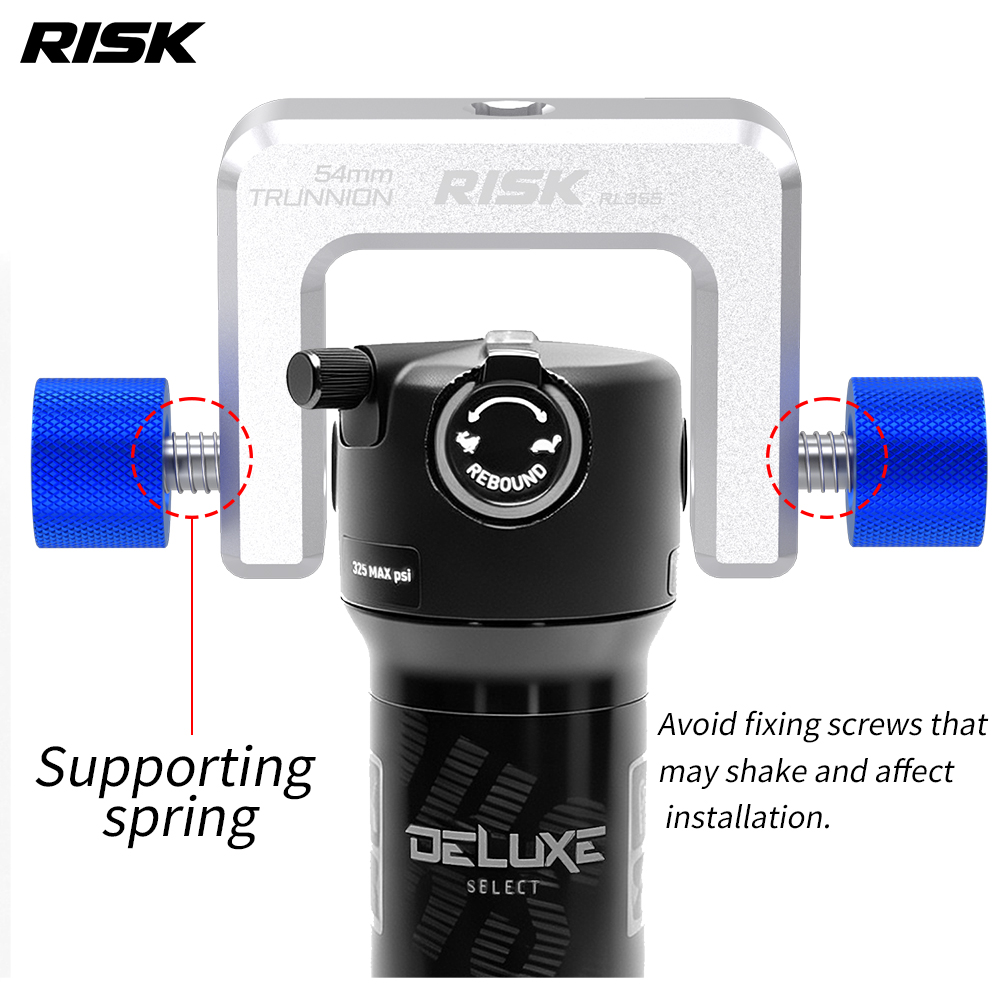

- Supporting springs help keep the fixing screws positioned during installation.

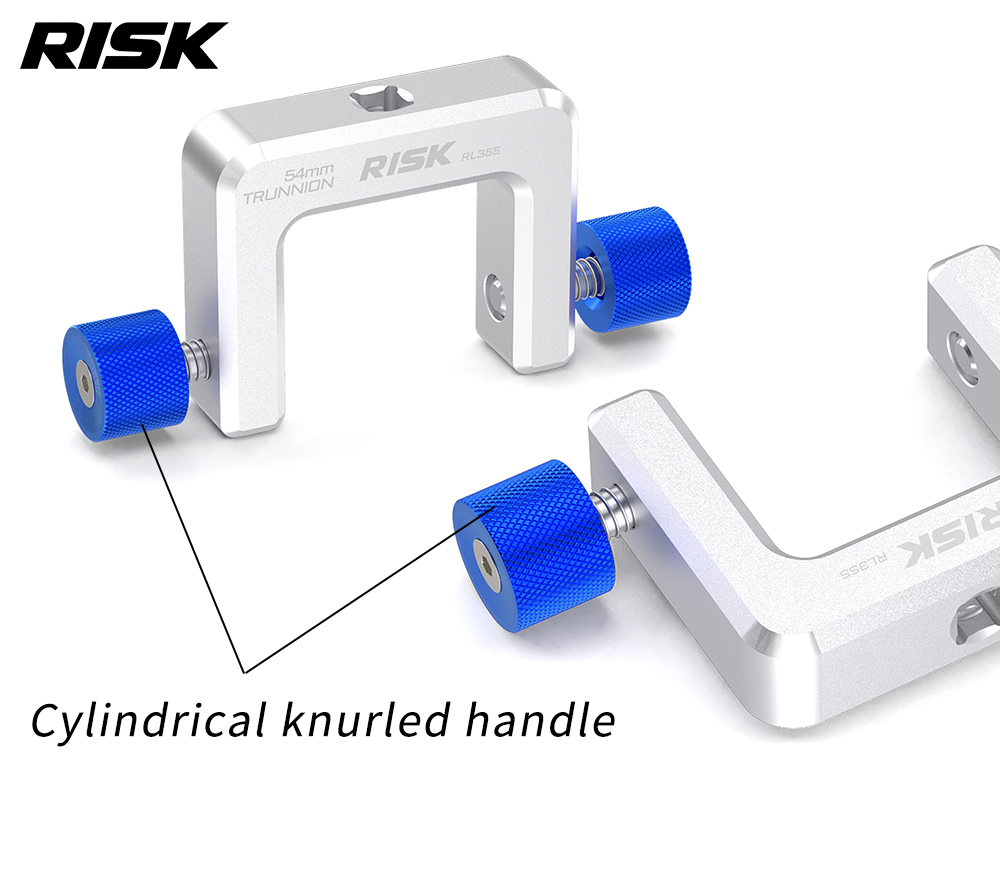

- Cylindrical knurled handles provide a textured grip for adjustment.
- A 3/8-inch drive interface is shown for a compatible torque wrench.
Specifications
| Model / quantity | RL355 / One holding tool |
|---|---|
| Trunnion spacing | 54mm |

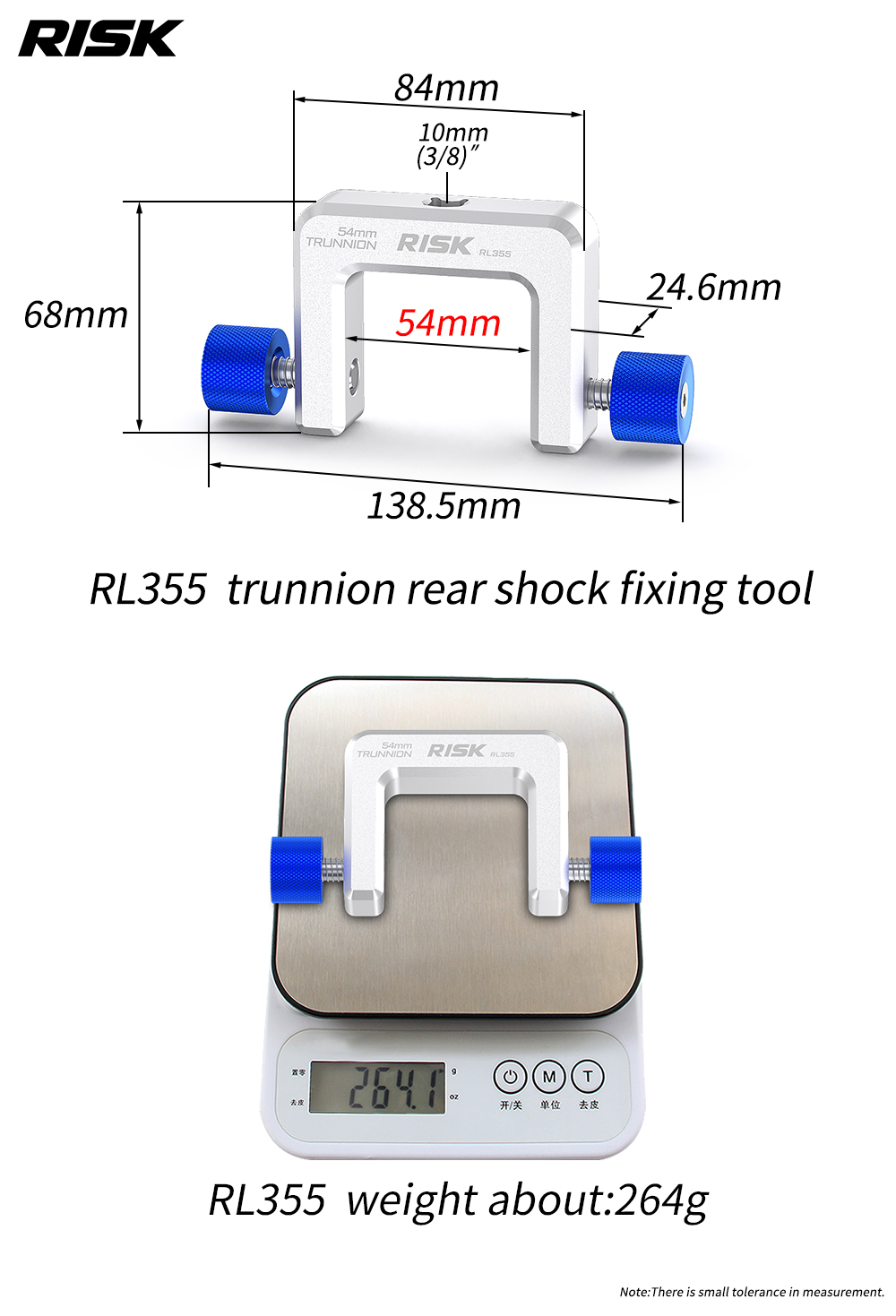

| Body size | 84mm width × 68mm height × 24.6mm thickness |
| Overall width shown | 138.5mm including handles |
| Drive interface | 3/8-inch; 10mm dimension shown |

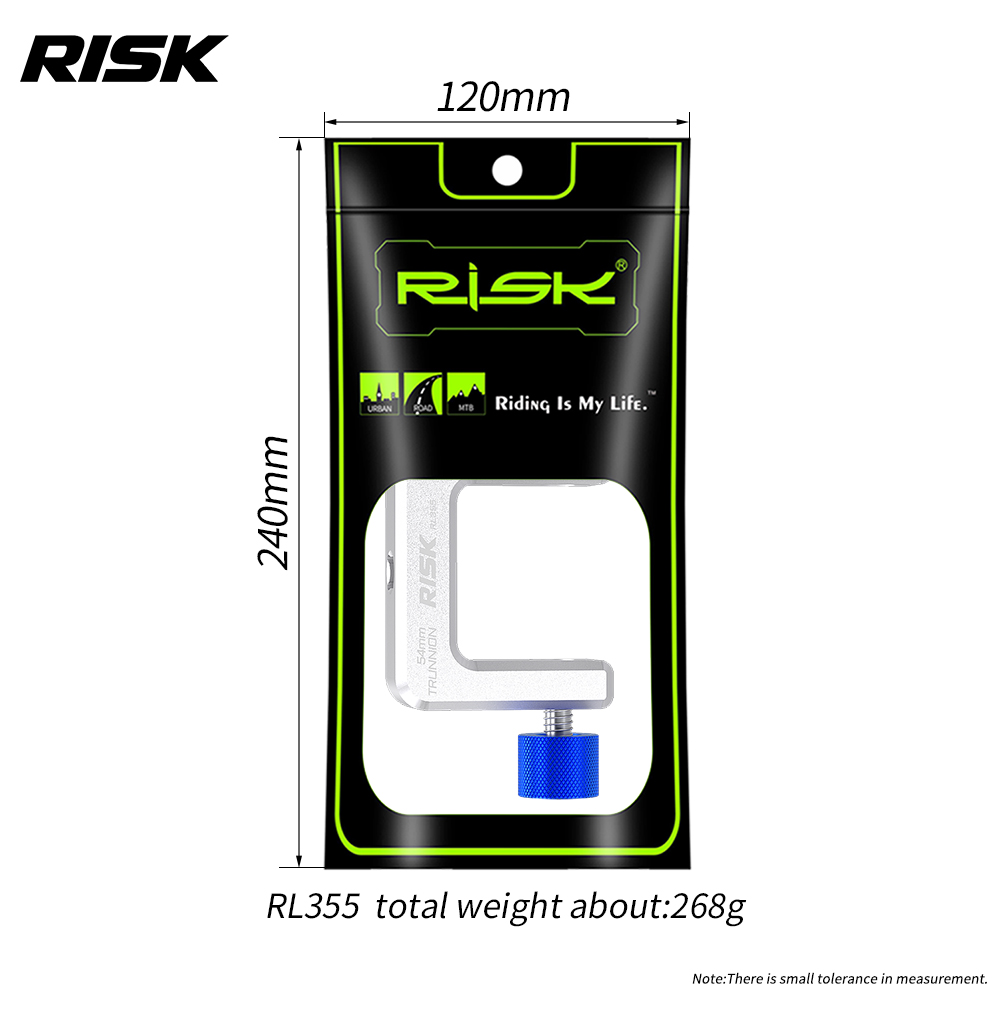

| Approximate net weight | 264g |
| Key Feature | Drive interface: 3/8-inch; 10mm dimension shown |
| Compatibility | for Bicycle Shock Service |
Fit, Use and Care
- Check that the shock uses the 54mm trunnion interface shown; verify clearance with the exact shock body.
- The tool is shown with a bench vise and 3/8-inch torque wrench. Follow the shock manufacturer service procedure and torque values.
- Rear shock, vise and torque wrench are demonstration items and are not included.
Weights and dimensions are approximate. See the original product images below for measurement details.
Available Options
Each row below is one available option combination. Choose the complete combination that matches your setup.
| Option 1 |
|---|
| RL355 – 54mm Trunnion Holding Tool |
