RISK Titanium Seatpost Clamp Bolt for Specialized Tarmac SL7 and SL8, M5 x 29 mm Thread, T25 Torx Drive, Three Finishes

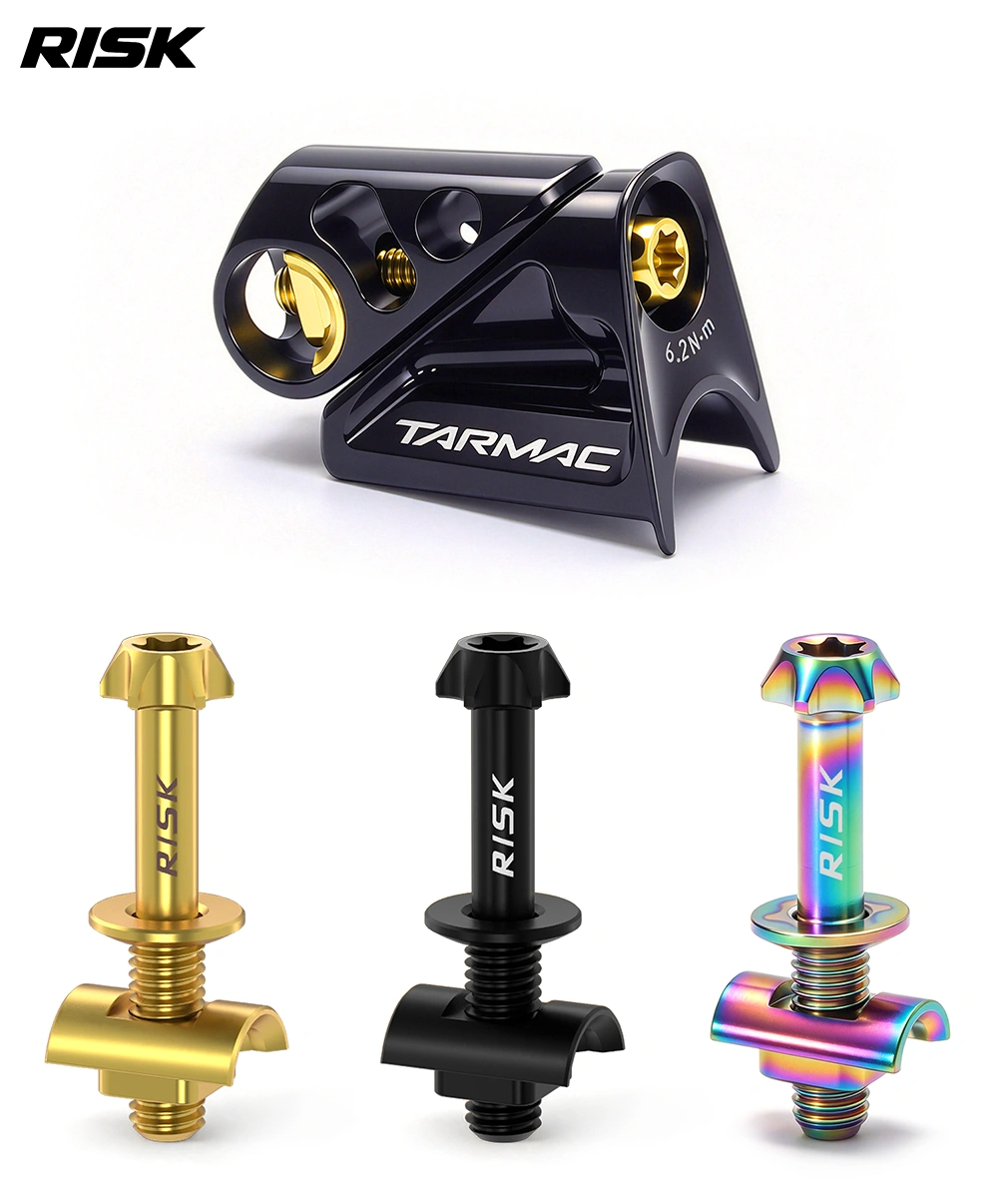

Titanium seatpost clamp bolt assemblies for Specialized Tarmac SL7 and SL8.
Choose RT152 for SL7 or RT153 for SL8, in Rainbow, Gold or Black.
Both models use an M5 x 29 mm thread and a T25 Torx drive.
Related
Descriptions
RISK Titanium Seatpost Clamp Bolt
Titanium seatpost clamp bolt assemblies for Specialized Tarmac SL7 and SL8. Choose RT152 for SL7 or RT153 for SL8, in Rainbow, Gold or Black. Both models use an M5 x 29 mm thread and a T25 Torx drive.
Models and Options
| Model | Compatibility | Cross nut dimensions | Approx. net weight |
|---|---|---|---|
| RT152 | Specialized Tarmac SL7 | 8 mm wide x 5.5 mm high | 3.5 g |
| RT153 | Specialized Tarmac SL8 | 10 mm wide x 6 mm high | 3.9 g |

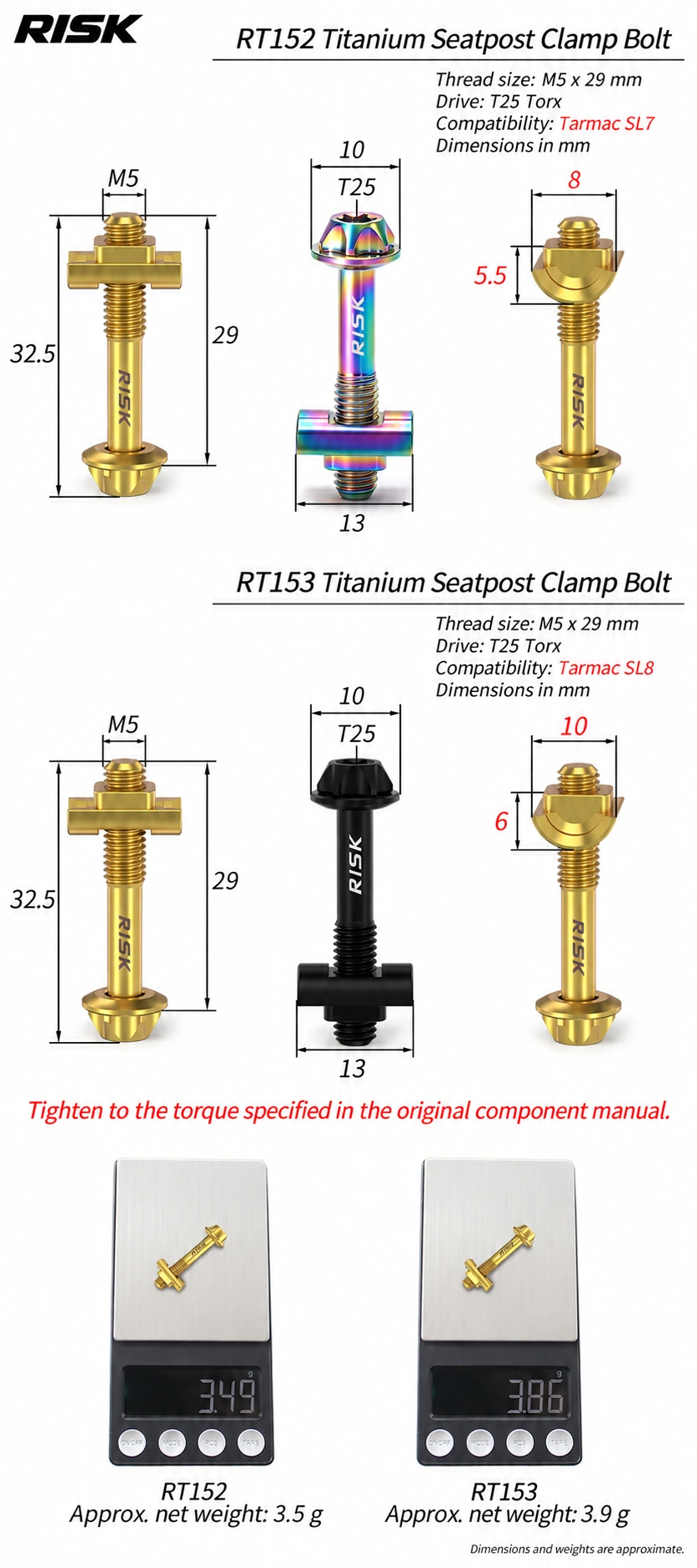

Thread, Drive and Overall Length

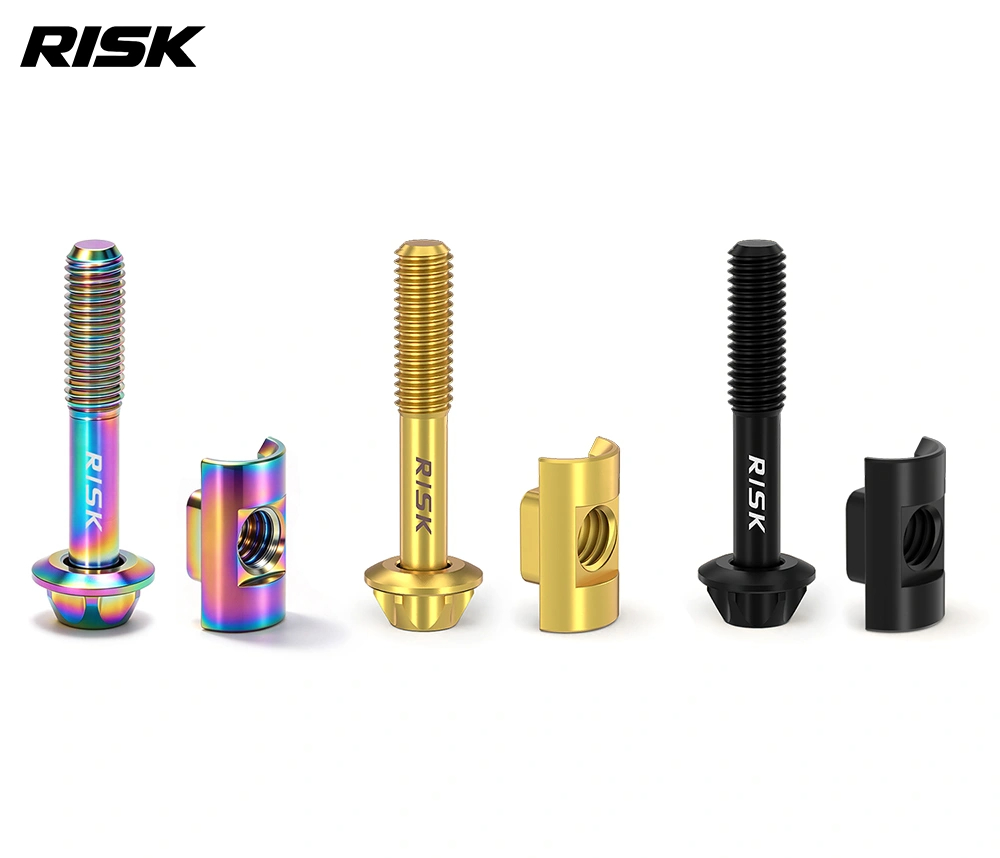

Both models have an M5 x 29 mm thread, a T25 Torx drive and an overall length of 32.5 mm as shown in the dimension drawings. RT152 and RT153 have different cross nut dimensions; compare the original assembly with the detail images to select the correct model.

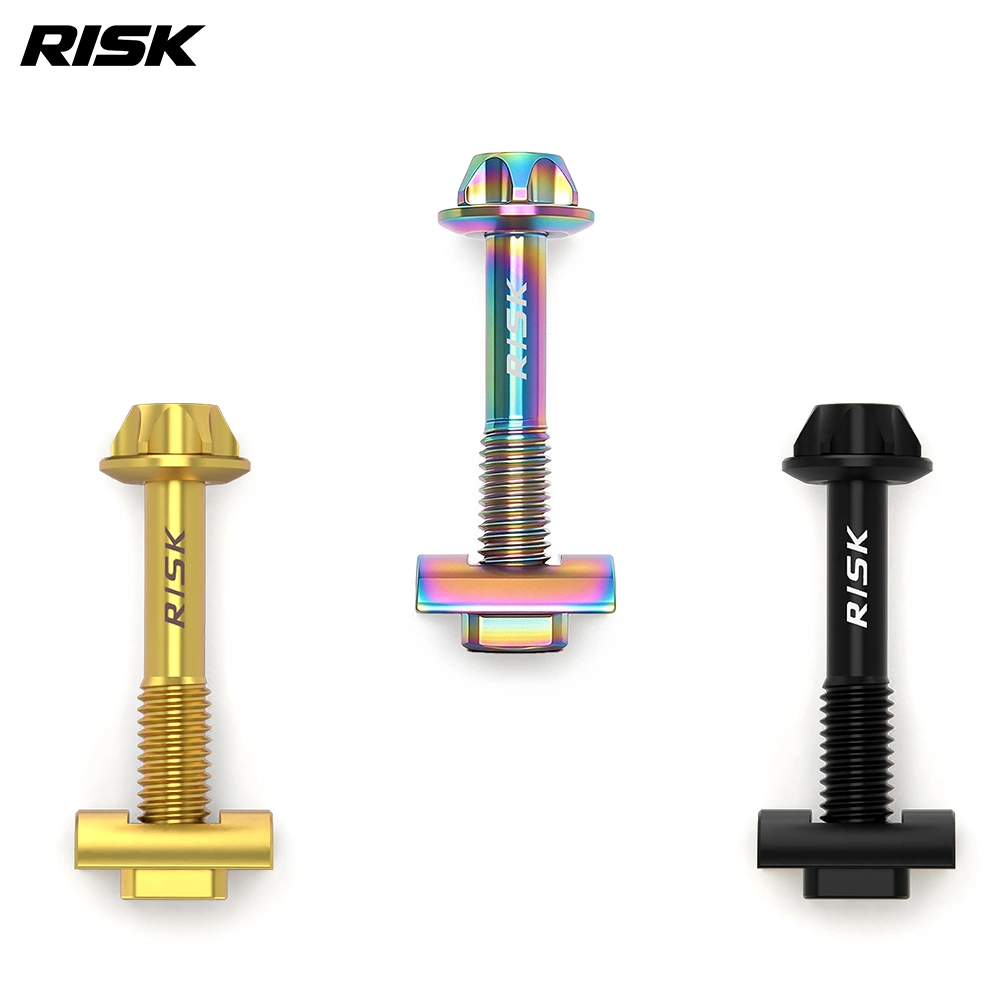

Models and Finishes
RT152-1 / RT153-1: Rainbow.
RT152-2 / RT153-2: Gold.
RT152-3 / RT153-3: Black.
Select RT152 for the Tarmac SL7 or RT153 for the Tarmac SL8 before choosing the finish.
Installation
Use a T25 Torx tool and tighten to the torque specified in the original component manual. Match the replacement assembly to the original clamp before installation.

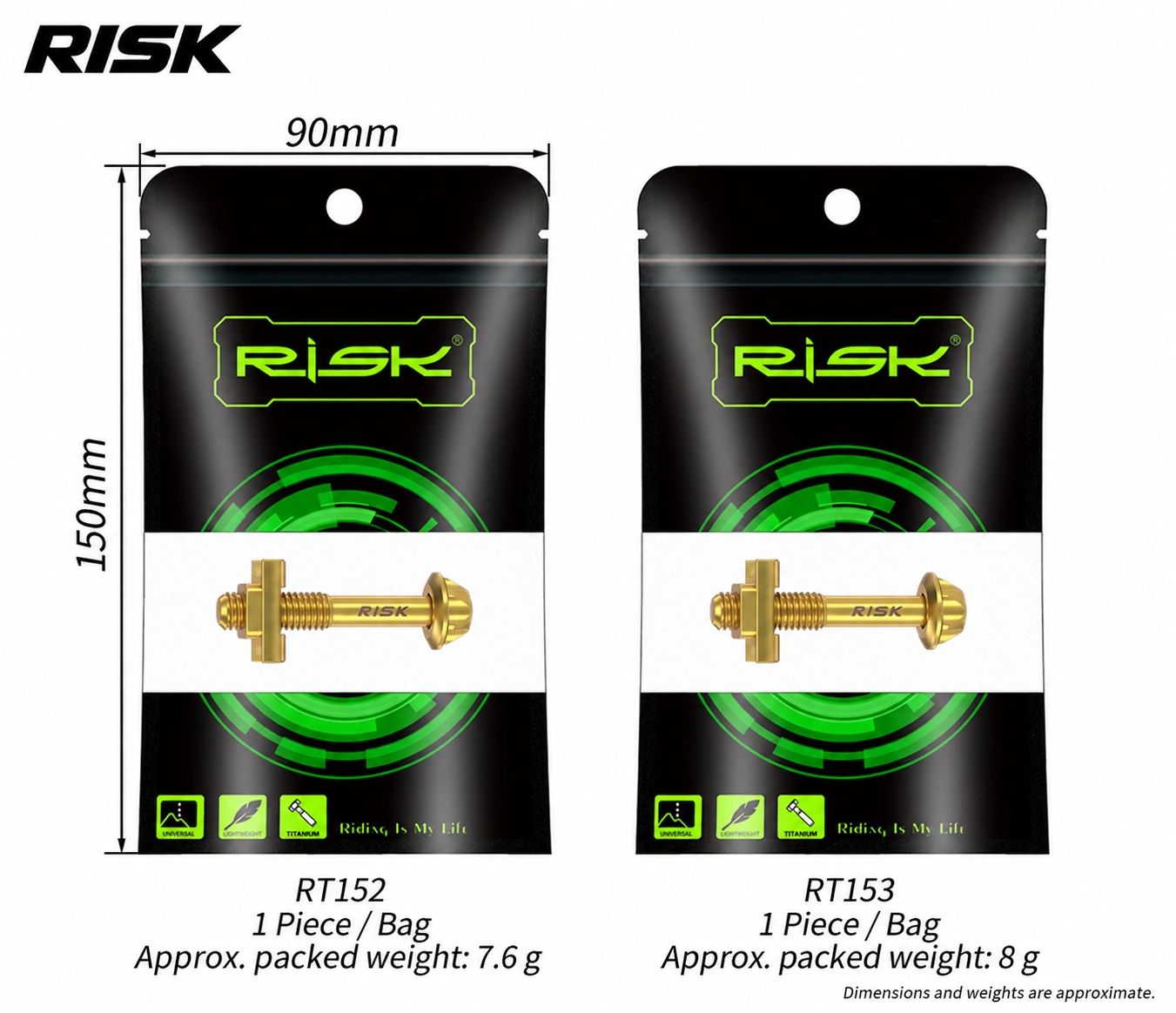

Package Contents
One selected bolt assembly per bag. Approximate packed weight is 7.6 g for RT152 or 8 g for RT153. Frames, seatposts and clamp bodies shown in demonstrations are not included. Dimensions and weights are approximate.
