RISK RL268+RT137 Road Bike Shifter Pivot Pin Installation Tool for R7170 R8170 R9270

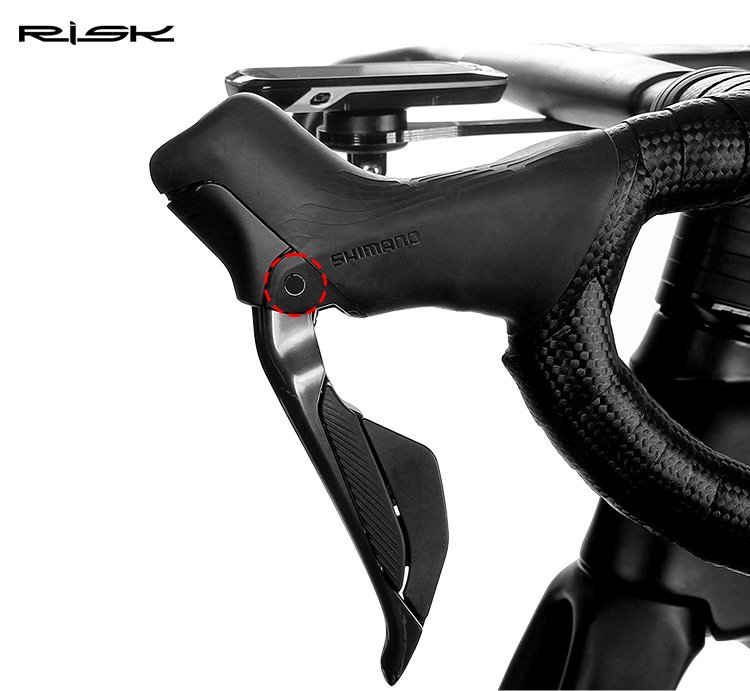

The RISK RL268+RT137 Road Bike Shifter Pivot Pin Installation Tool is designed for installing and replacing shifter cylindrical pivot pins on compatible road bike shift/brake levers.

It is suitable for R7170 / R8170 / R9270 series shifters and other compatible models using a 5 × 26.7mm pivot pin. The tool helps remove the original steel pin and install the replacement titanium alloy pin more accurately and efficiently.

Two purchase options are available:

• RL268+RT137: 1 shifter pivot pin + installation tool kit
• RT137: 2 titanium alloy shifter pivot pins only

Key Benefits

• Designed for road bike shifter repair
  Helps replace the cylindrical pivot pin inside compatible shift/brake levers.
• Compatible with R7170 / R8170 / R9270 shifters
  Suitable for road bike STI-style shifters using 5 × 26.7mm pins.
• Titanium alloy replacement pin
  Lightweight, durable, and corrosion-resistant compared with standard steel pins.

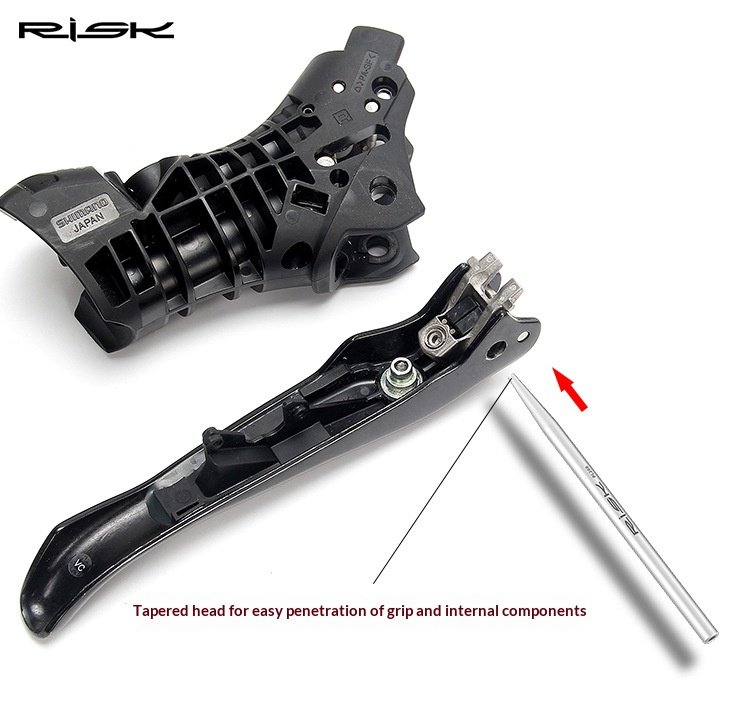

• Tapered installation tool design
  The pointed tool head helps pass through the lever body and internal components more smoothly.

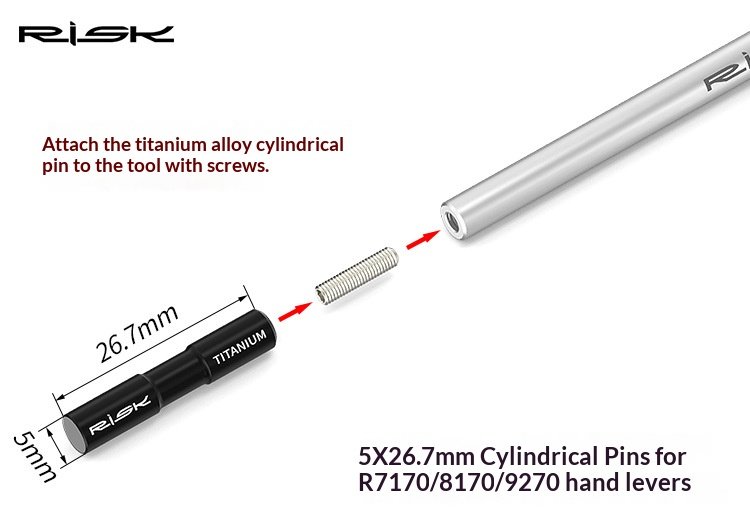

• M3 threaded connection
  The pin and installation tool can be connected with the included screw for easier installation.
• Compact and lightweight
  Easy to store in a toolbox and suitable for workshop or home repair use.

Suitable For

• Road bike shifter maintenance
• Shifter pivot pin replacement
• Shimano 105 / Ultegra / Dura-Ace compatible shifters
• R7170 / R8170 / R9270 series shifters
• Bicycle repair shops
• Home mechanics and DIY bike maintenance users

Important Notes

• Please confirm your shifter model and pin size before purchase.
• Compatibility is for 5 × 26.7mm cylindrical pivot pins. Actual fitment should be checked before installation.

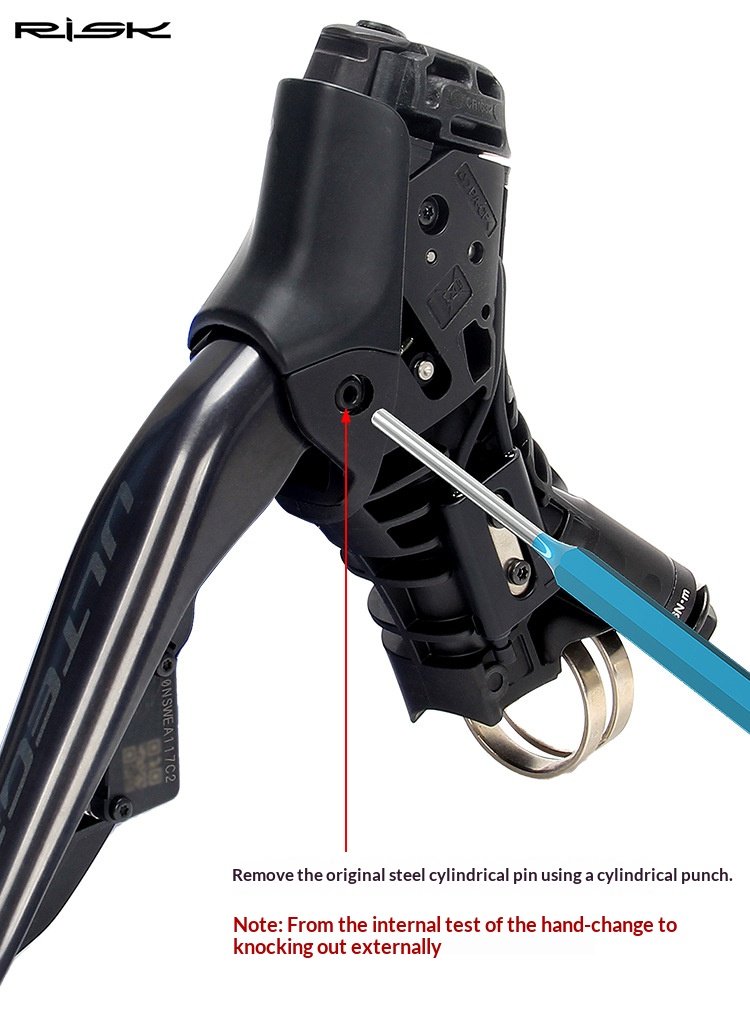

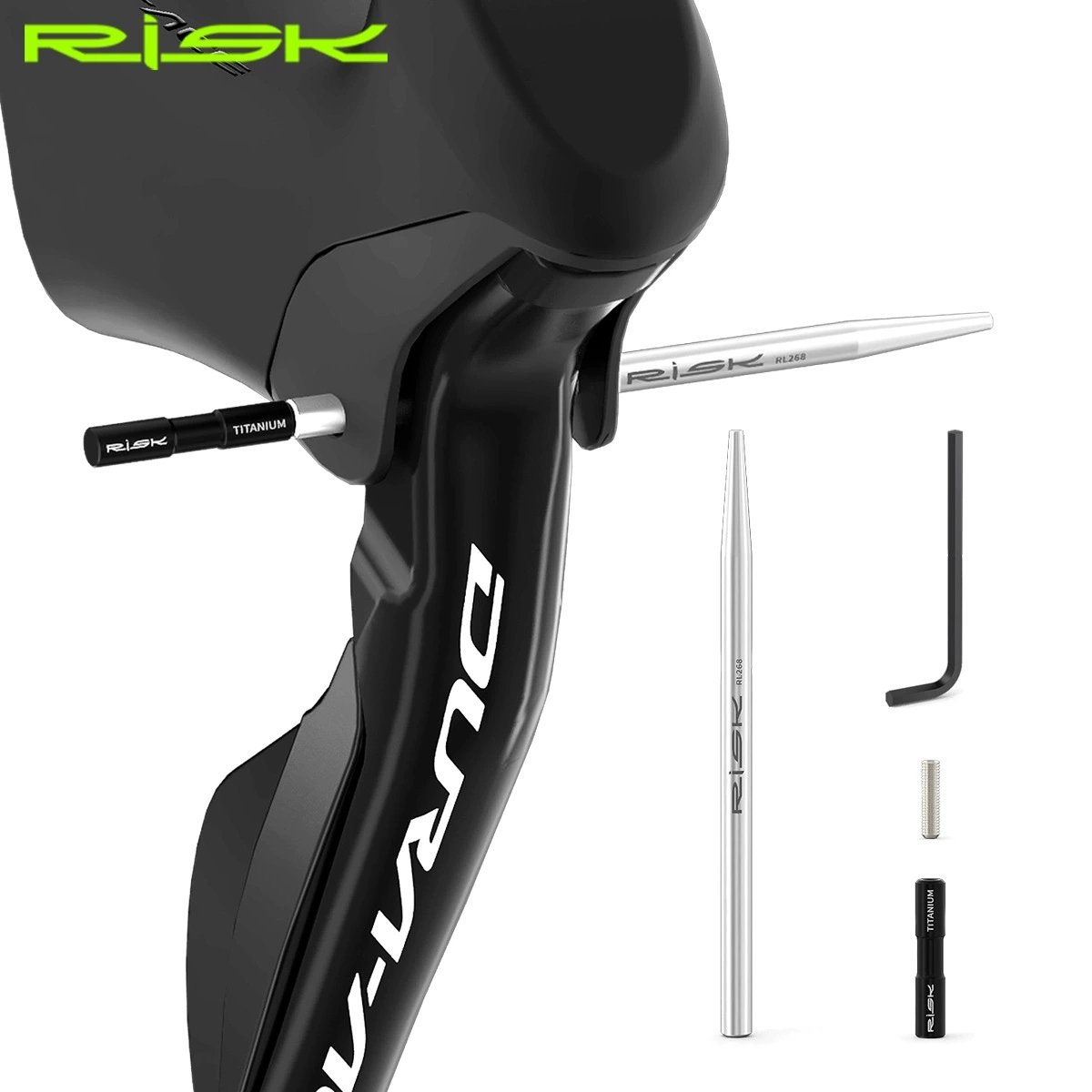

• When removing the original pin, push it from the inside of the shifter to the outside.

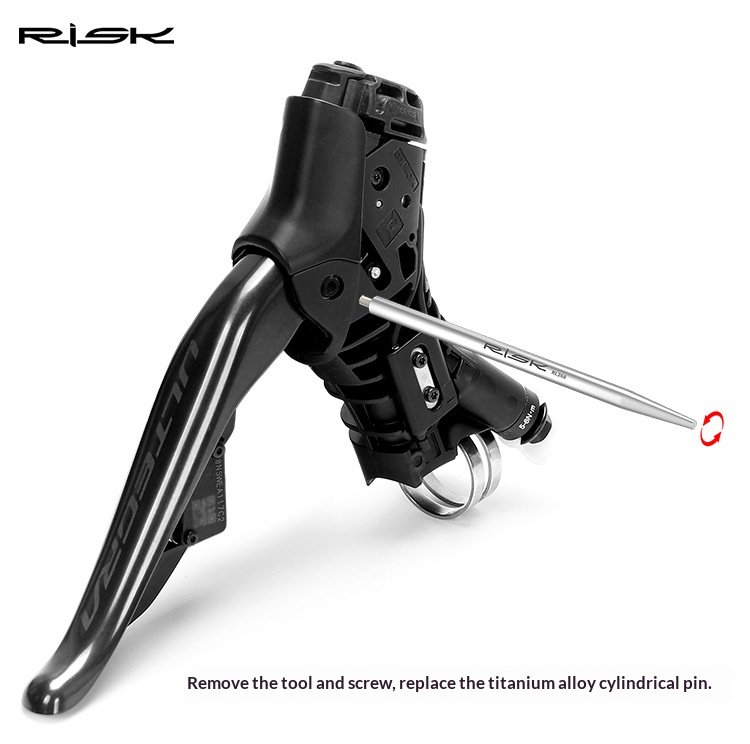

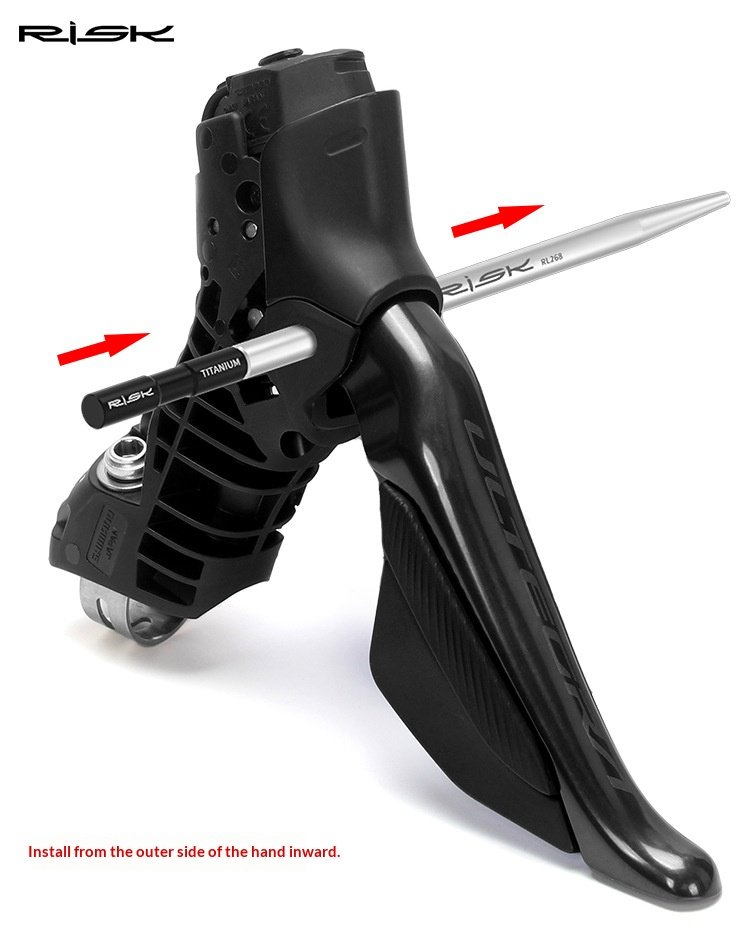

• When installing the titanium pin, install it from the outside of the shifter to the inside.

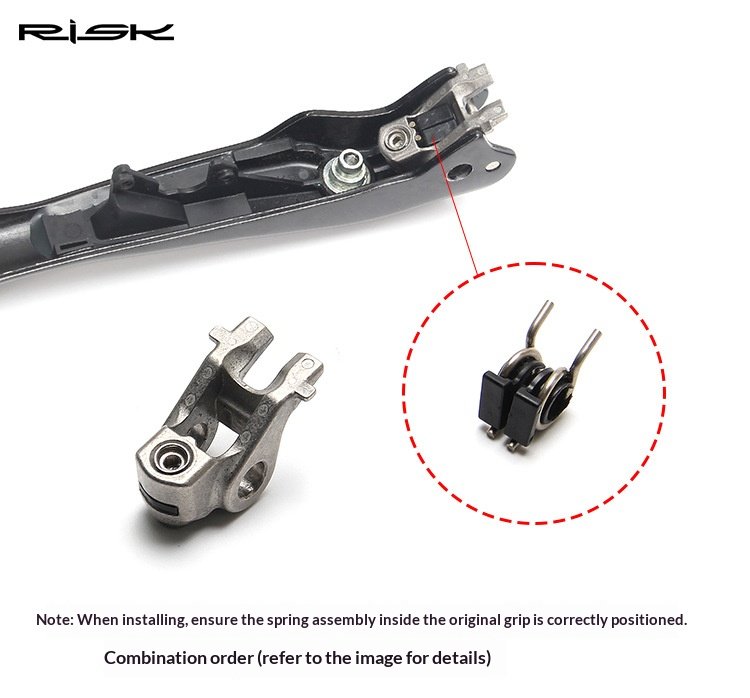

• During installation, make sure the internal spring components are assembled in the correct order.
• The page only sells the selected tool and/or pivot pins. Shifter lever and other display parts are not included.
• Manual measurement may result in slight size and weight differences.

Product Details

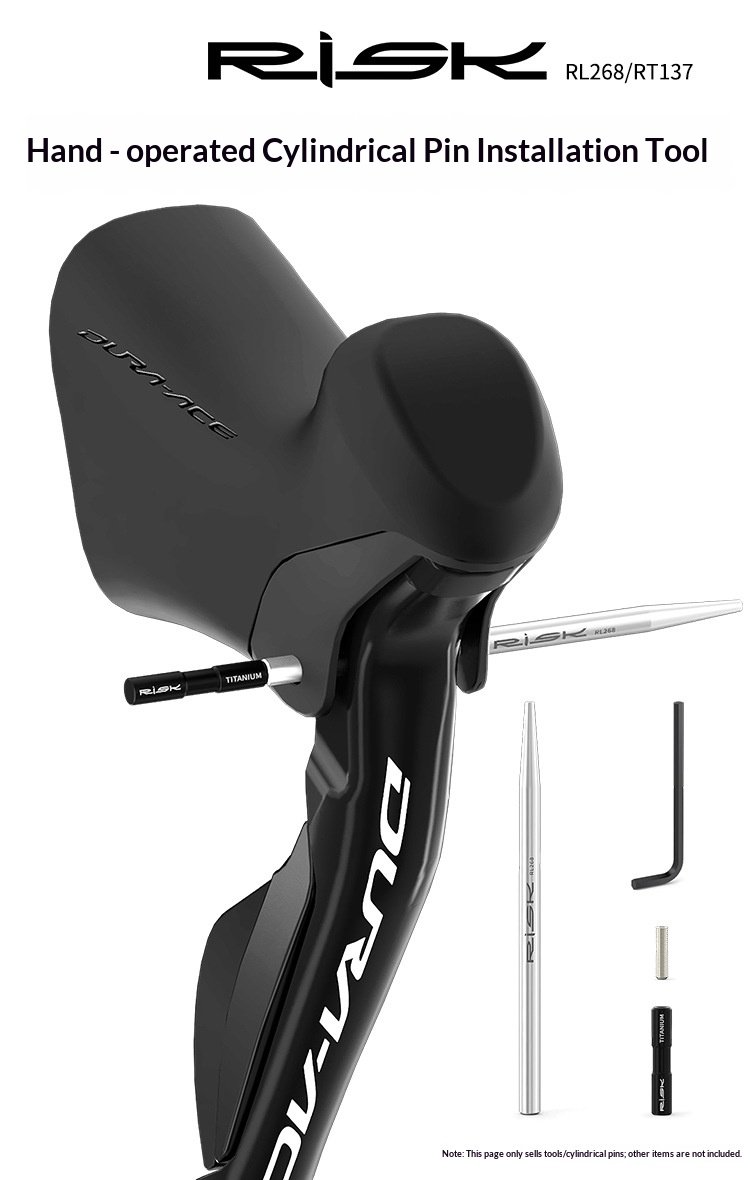

Option 1: RL268+RT137 Tool Kit

• Brand: RISK
• Model: RL268+RT137
• Product Name: Shifter Pivot Pin Installation Tool Kit
• Material: Metal / Titanium alloy pin
• Package Includes:
  • 1 × installation tool
  • 1 × titanium alloy shifter pivot pin
  • 1 × M3 screw
  • 1 × 1.5mm hex wrench

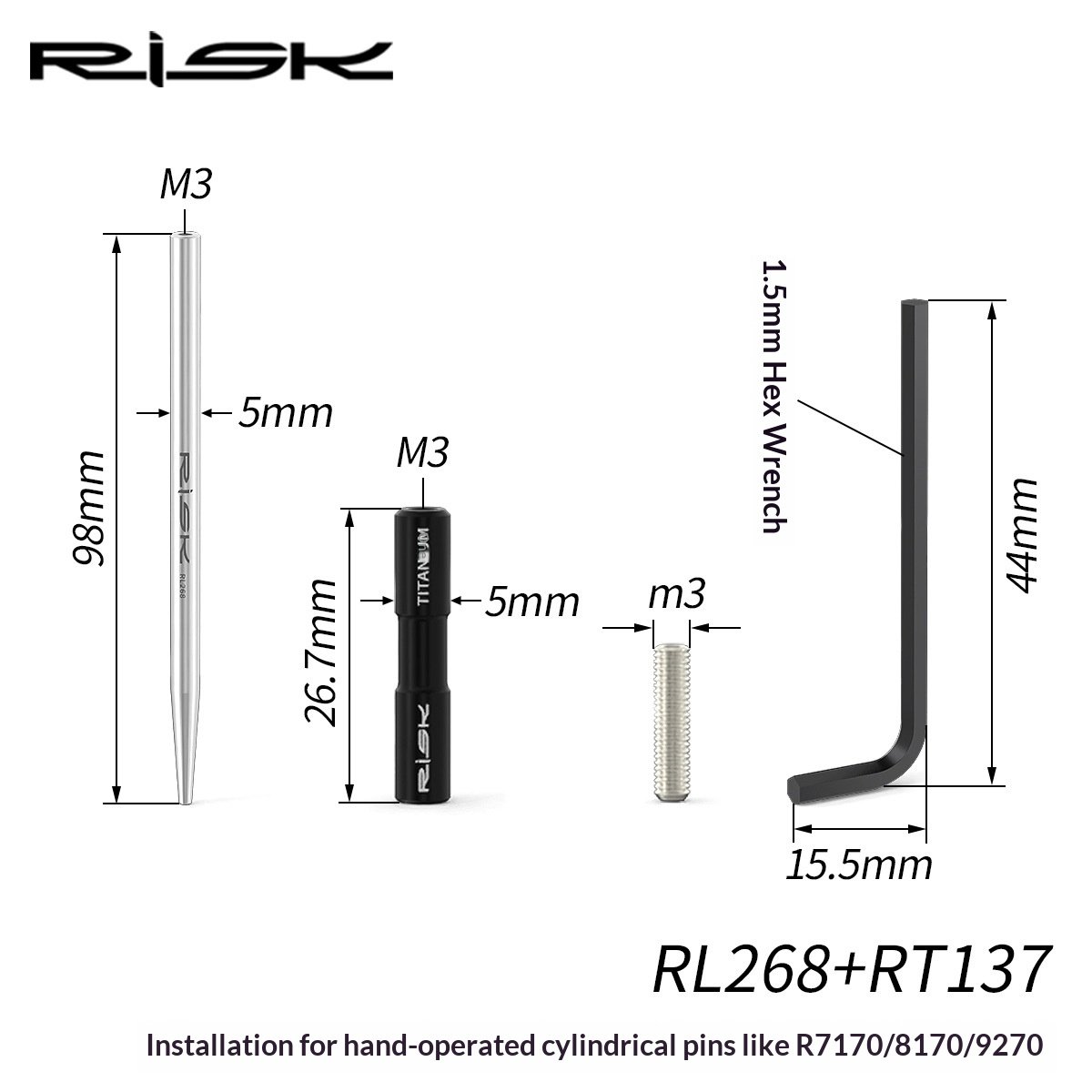

• Tool Size: Approx. 98mm length, 5mm diameter
• Pivot Pin Size: Approx. 5 × 26.7mm
• Hex Wrench Size: 1.5mm, approx. 44mm length

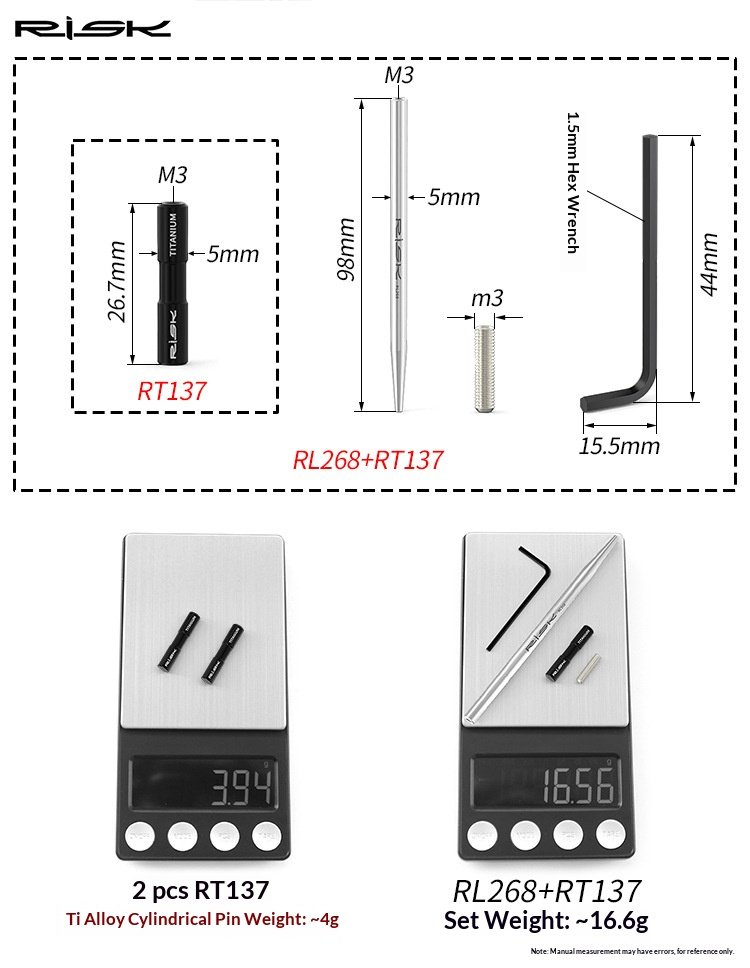

• Net Weight: Approx. 16.6g / set

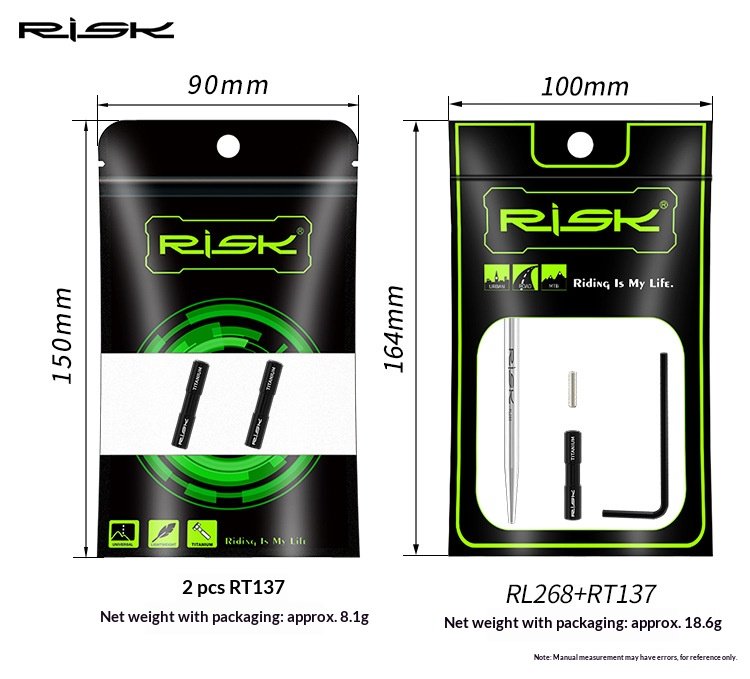

• Package Size: Approx. 16.4 × 10 × 0.5cm
• Gross Weight: Approx. 19g

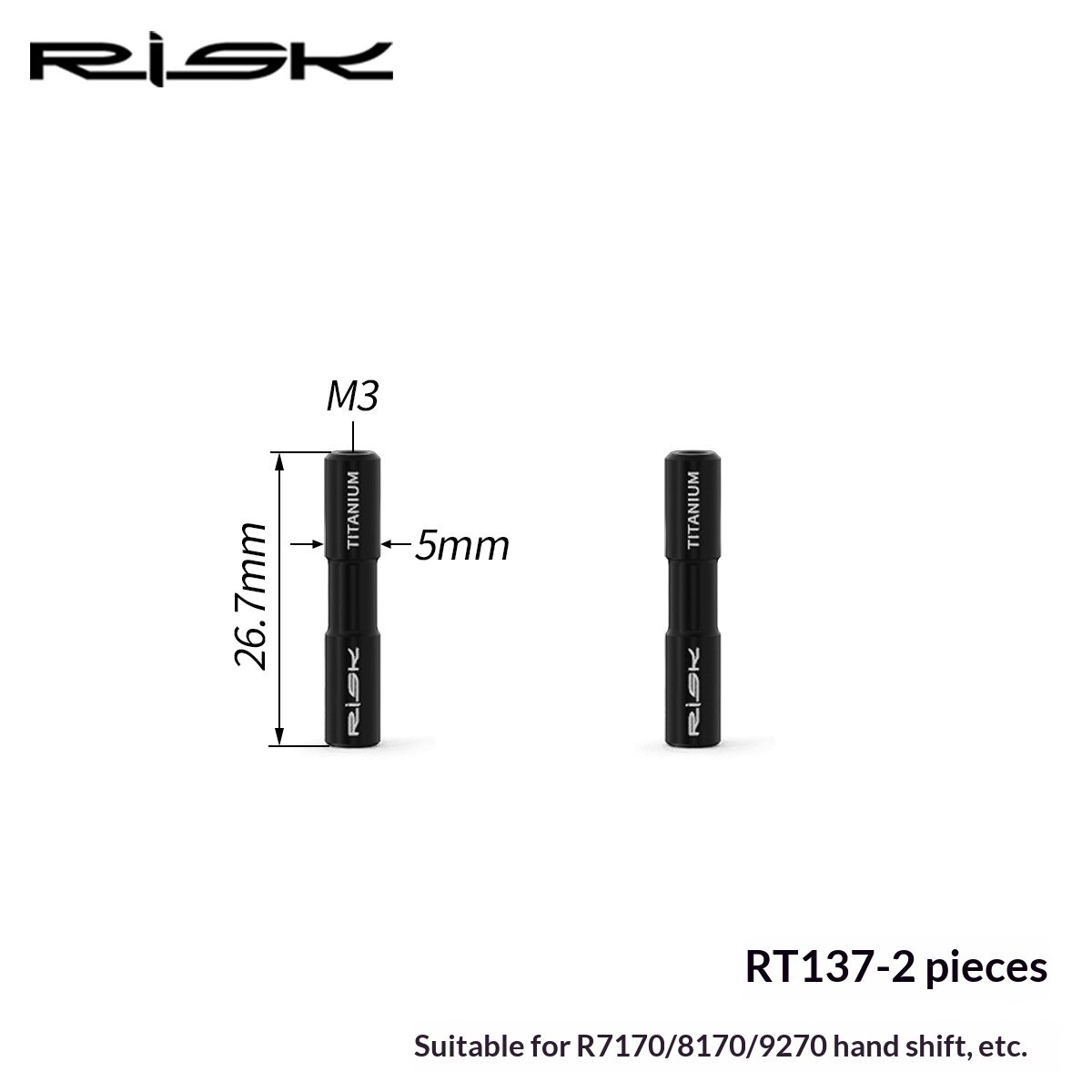

Option 2: RT137 Pivot Pins Only

• Brand: RISK
• Model: RT137
• Product Name: Titanium Alloy Shifter Pivot Pins
• Material: Titanium alloy
• Package Includes: 2 × shifter pivot pins
• Pin Size: Approx. 5 × 26.7mm
• Thread: M3
• Net Weight: Approx. 4g / 2 pcs
• Package Size: Approx. 15 × 9 × 0.5cm
• Gross Weight: Approx. 9g
